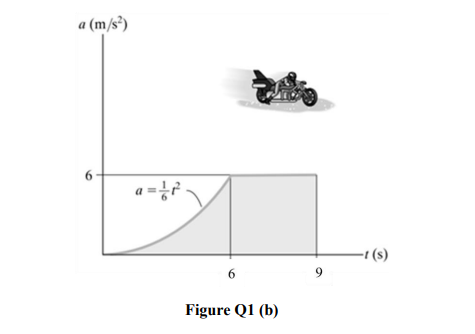

A M S 1 S 6 9 Figure Q1 B B A Motorcyclist Starting From Rest Travels Along A Straight Road And For 9 S Has An 1 (20.16 KiB) Viewed 32 times
a (m/s) 1(s) 6 9 Figure Q1 (b)
(b) A motorcyclist starting from rest travels along a straight road and for 9 s has an acceleration as shown in Figure Q1(b). (i) Draw the v-t graph that describes the motion. (7 marks) (ii) Calculate the distance travelled, Sr, in t=9 s. (4 marks)
