**please pay attention to the labeling**

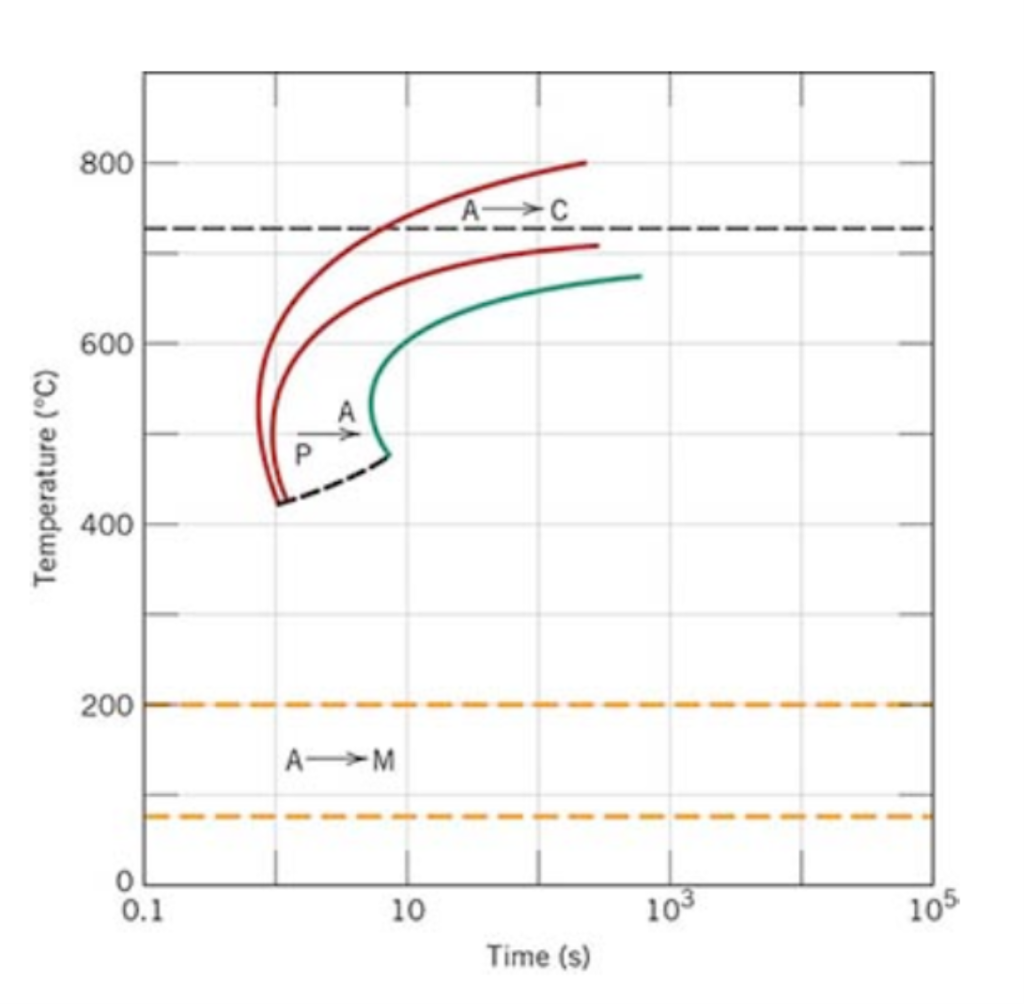

Figure shows the continuous cooling transformation diagram for
1.13 wt% C iron-carbon alloy, Sketch and label continuous cooling
curves to yield the following microstructures
A. Fine pearlite and proeutectoid cementite
B. Coarse pearlite and proeutectoid cementite
C. Martensite
D. Fine pearlite and proeutectoid ferrite

Please Pay Attention To The Labeling Figure Shows The Continuous Cooling Transformation Diagram For 1 13 Wt C Iron 1 (401.86 KiB) Viewed 27 times

800 A->C 600 o al P Temperature (°C) 400 200 AM o 0.1 10 103 105 Time (s)
