The steel composite section consists of a 600x20 mm thick steel plate which is placed on the top flange of a Universal B

[answerhappygod]

The Steel Composite Section Consists Of A 600x20 Mm Thick Steel Plate Which Is Placed On The Top Flange Of A Universal B 1 (145.46 KiB) Viewed 34 times

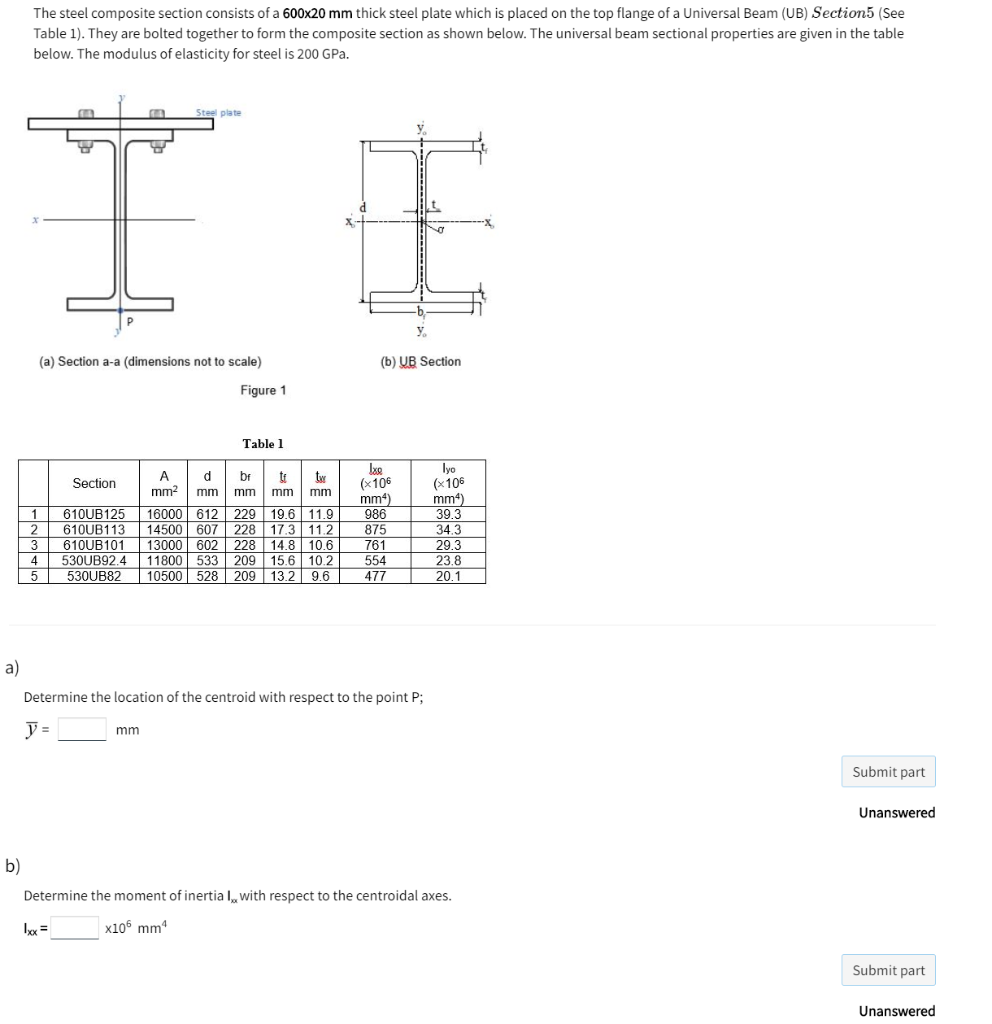

The steel composite section consists of a 600x20 mm thick steel plate which is placed on the top flange of a Universal Beam (UB) Section 5 (See Table 1). They are bolted together to form the composite section as shown below. The universal beam sectional properties are given in the table below. The modulus of elasticity for steel is 200 GPa. Steel plate I + 0 y. (a) Section a-a (dimensions not to scale) (b) UB Section ) Figure 1 Table 1 1 Section A mm2 d mm br mm tw mm mm 1 2 3 3 4 5 5 610UB125 610UB113 610UB101 530UB92.4 530UB82 16000 612 612 229 19.6 11.9 14500607 607 228 17.3 11.2 13000 602 602 228 14.8 14.810.6 11800 533 209 15.6 10.2 10500 528 528 209 13.2 9.6 Ixe (x106 ( mm) 986 875 761 554 477 Iyo (x106 mm) 39.3 34.3 29.3 23.8 20.1 a) Determine the location of the centroid with respect to the point P; J = mm Submit part Unanswered b) Determine the moment of inertial, with respect to the centroidal axes. x106 mm Submit part Unanswered
