1. The suspension system for one wheel of an old-fashioned pickup truck is illustrated in the figure. The mass of the ve

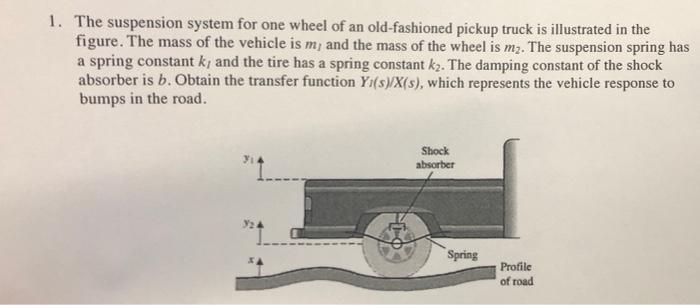

1. The suspension system for one wheel of an old-fashioned pickup truck is illustrated in the figure. The mass of the vehicle is m, and the mass of the wheel is m2. The suspension spring has a spring constant k, and the tire has a spring constant k2. The damping constant of the shock absorber is b. Obtain the transfer function Yr(s)/X(s), which represents the vehicle response to bumps in the road. Yi Shock absorber Spring Profile of road
