5 (a) The tank shown below in Figure Q5(a) is filled to a depth h with liquid of density p, and has a quarter circle of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5 (a) The tank shown below in Figure Q5(a) is filled to a depth h with liquid of density p, and has a quarter circle of

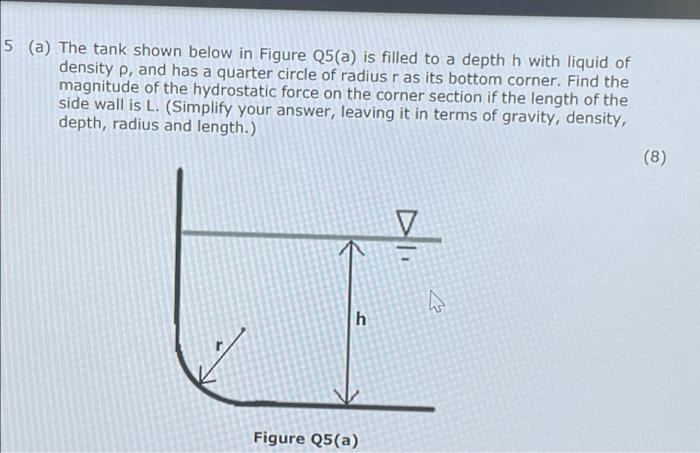

5 (a) The tank shown below in Figure Q5(a) is filled to a depth h with liquid of density p, and has a quarter circle of radius r as its bottom corner. Find the magnitude of the hydrostatic force on the corner section if the length of the side wall is L. (Simplify your answer, leaving it in terms of gravity, density, depth, radius and length.) (8) h Figure Q5(a)
