- Consider The System Shown In Figure Below Assume The Values Of J 5 Kg M And B 30 N M S Rad Determine I The Valu 1 (44.69 KiB) Viewed 30 times
Consider the system shown in Figure below. Assume the values of J = 5 kg-m? and b = 30 N-m-s/rad. Determine, i. The valu
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider the system shown in Figure below. Assume the values of J = 5 kg-m? and b = 30 N-m-s/rad. Determine, i. The valu

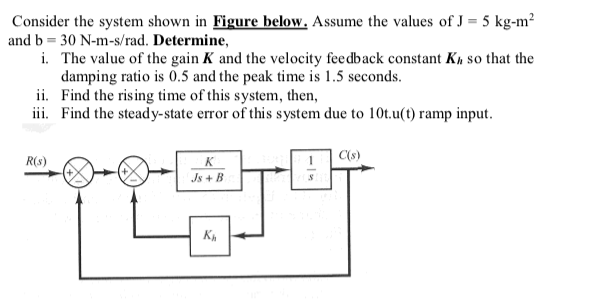

Consider the system shown in Figure below. Assume the values of J = 5 kg-m? and b = 30 N-m-s/rad. Determine, i. The value of the gain K and the velocity feedback constant K, so that the damping ratio is 0.5 and the peak time is 1.5 seconds. ii. Find the rising time of this system, then, iii. Find the steady-state error of this system due to 10t.u(t) ramp input. R(3) C(s) к Js+B KM
