Problem 3. Same beam as in Problem 2, determine the maximum bending stress and maximum shear stress in the given beam. N

Post by answerhappygod »

Problem 3 Same Beam As In Problem 2 Determine The Maximum Bending Stress And Maximum Shear Stress In The Given Beam N 1
Problem 3 Same Beam As In Problem 2 Determine The Maximum Bending Stress And Maximum Shear Stress In The Given Beam N 1 (18.92 KiB) Viewed 56 times

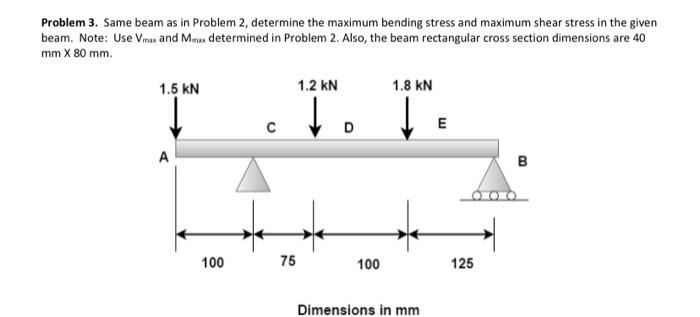

Problem 3. Same beam as in Problem 2, determine the maximum bending stress and maximum shear stress in the given beam. Note: Use Vmax and Mn.. determined in Problem 2. Also, the beam rectangular cross section dimensions are 40 mm X 80 mm. 1.5 KN 1.2 kN 1.8 KN lo E A B 100 75 100 125 Dimensions in mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
