5 (a) Figure Q5(a) shows the orientations of masses mp=500 g, mQ=400 g and mr=600 g attached on a rotating circular plat
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
5 (a) Figure Q5(a) shows the orientations of masses mp=500 g, mQ=400 g and mr=600 g attached on a rotating circular plat

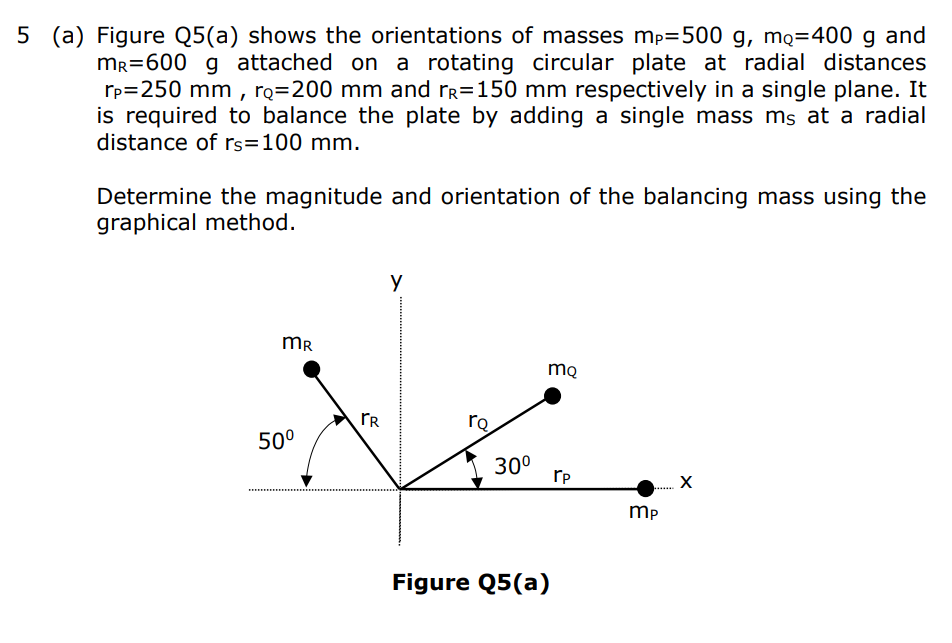

5 (a) Figure Q5(a) shows the orientations of masses mp=500 g, mQ=400 g and mr=600 g attached on a rotating circular plate at radial distances rp=250 mm , rq=200 mm and rr=150 mm respectively in a single plane. It is required to balance the plate by adding a single mass ms at a radial distance of rs=100 mm. Determine the magnitude and orientation of the balancing mass using the graphical method. у mr mg TR 50° 30° rp х mp Figure Q5(a)
