QUESTION-3: Create a drawing of the object, as shown in figure below. The drawing shall include the following views: a F

Post by answerhappygod »

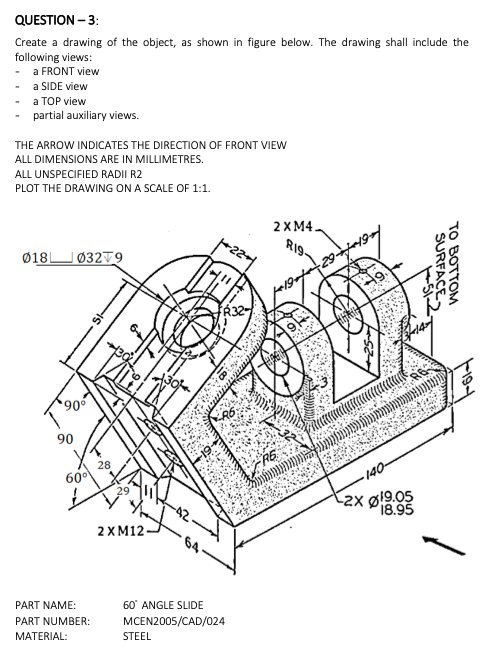

Question 3 Create A Drawing Of The Object As Shown In Figure Below The Drawing Shall Include The Following Views A F 1
Question 3 Create A Drawing Of The Object As Shown In Figure Below The Drawing Shall Include The Following Views A F 1 (128.7 KiB) Viewed 23 times
QUESTION-3: Create a drawing of the object, as shown in figure below. The drawing shall include the following views: a FRONT view - a SIDE view - a TOP view - partial auxiliary views. THE ARROW INDICATES THE DIRECTION OF FRONT VIEW ALL DIMENSIONS ARE IN MILLIMETRES. ALL UNSPECIFIED RADII R2 PLOT THE DRAWING ON A SCALE OF 1:1. 2 X M4. RIS. 018 | 0329 29 SURFACE TO BOTTOM so is 16 10cm 25 900 90 28 60° 140- 2x 19.05 18.95 2 x M12- PART NAME: PART NUMBER: MATERIAL: 60 ANGLE SLIDE MCEN2005/CAD/024 STEEL
