Instruction: Solve the following problem graphically, either by Solidworks or manual drafting using drawing instruments.

[answerhappygod]

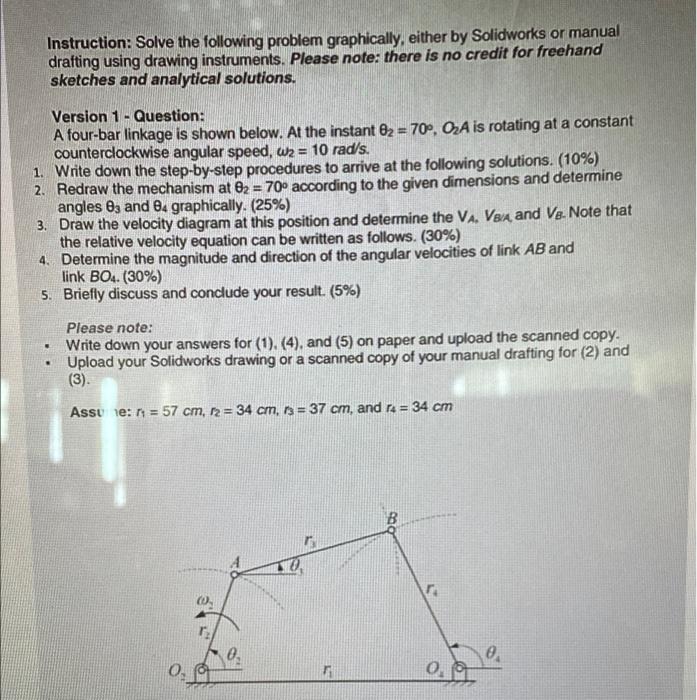

Instruction Solve The Following Problem Graphically Either By Solidworks Or Manual Drafting Using Drawing Instruments 1 (95.56 KiB) Viewed 31 times

Instruction: Solve the following problem graphically, either by Solidworks or manual drafting using drawing instruments. Please note: there is no credit for freehand sketches and analytical solutions. Version 1 - Question: A four-bar linkage is shown below. At the instant O2 = 70°, OA is rotating at a constant counterclockwise angular speed, w2 = 10 rad/s. 1. Write down the step-by-step procedures to arrive at the following solutions. (10%) 2. Redraw the mechanism at 02 = 70° according to the given dimensions and determine angles 03 and graphically. (25%) 3. Draw the velocity diagram at this position and determine the VA VBA and Vg. Note that the relative velocity equation can be written as follows. (30%) 4. Determine the magnitude and direction of the angular velocities of link AB and link BO4. (30%) 5. Briefly discuss and conclude your result. (5%) . Please note: Write down your answers for (1), (4), and (5) on paper and upload the scanned copy. Upload your Solidworks drawing or a scanned copy of your manual drafting for (2) and (3) . Assu se: n = 57 cm, 2 = 34 cm, 13 = 37 cm, and 14 = 34 cm 0, 0 0
