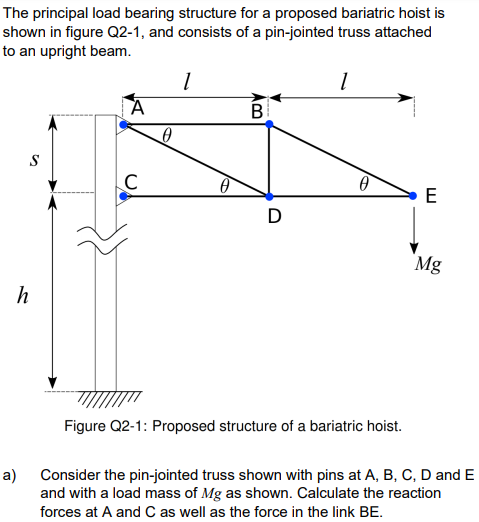

The principal load bearing structure for a proposed bariatric hoist is shown in figure Q2-1, and consists of a pin-jointed truss attached to an upright beam. 1 1 A B WV S С e E D Mg h Figure Q2-1: Proposed structure of a bariatric hoist. a) Consider the pin-jointed truss shown with pins at A, B, C, D and E and with a load mass of Mg as shown. Calculate the reaction forces at A and C as well as the force in the link BE.
