(i) Determine the shear force and bending moment equations. (ii) Draw the shear force and bending moment diagrams. (iii)

Post by answerhappygod »

I Determine The Shear Force And Bending Moment Equations Ii Draw The Shear Force And Bending Moment Diagrams Iii 1
I Determine The Shear Force And Bending Moment Equations Ii Draw The Shear Force And Bending Moment Diagrams Iii 1 (29.48 KiB) Viewed 33 times

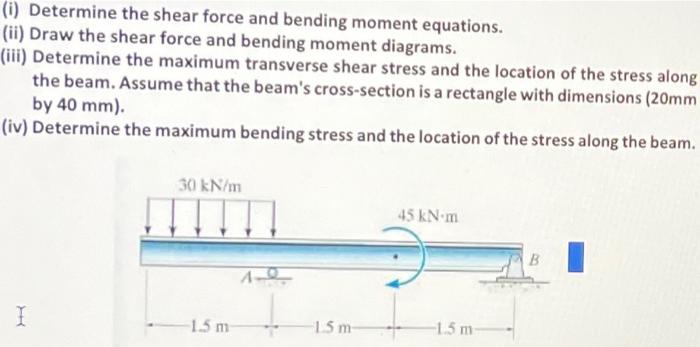

(i) Determine the shear force and bending moment equations. (ii) Draw the shear force and bending moment diagrams. (iii) Determine the maximum transverse shear stress and the location of the stress along the beam. Assume that the beam's cross-section is a rectangle with dimensions (20mm by 40 mm). (iv) Determine the maximum bending stress and the location of the stress along the beam. 30 kN/m 45 kNm B I 1.5 m 15 m -1.5 m
