Draw and write neatly to receive full credits. Use a rule to make a drawing. Problem 1: Analyze the truss structure pres

Post by answerhappygod »

Draw And Write Neatly To Receive Full Credits Use A Rule To Make A Drawing Problem 1 Analyze The Truss Structure Pres 1
Draw And Write Neatly To Receive Full Credits Use A Rule To Make A Drawing Problem 1 Analyze The Truss Structure Pres 1 (144.16 KiB) Viewed 29 times

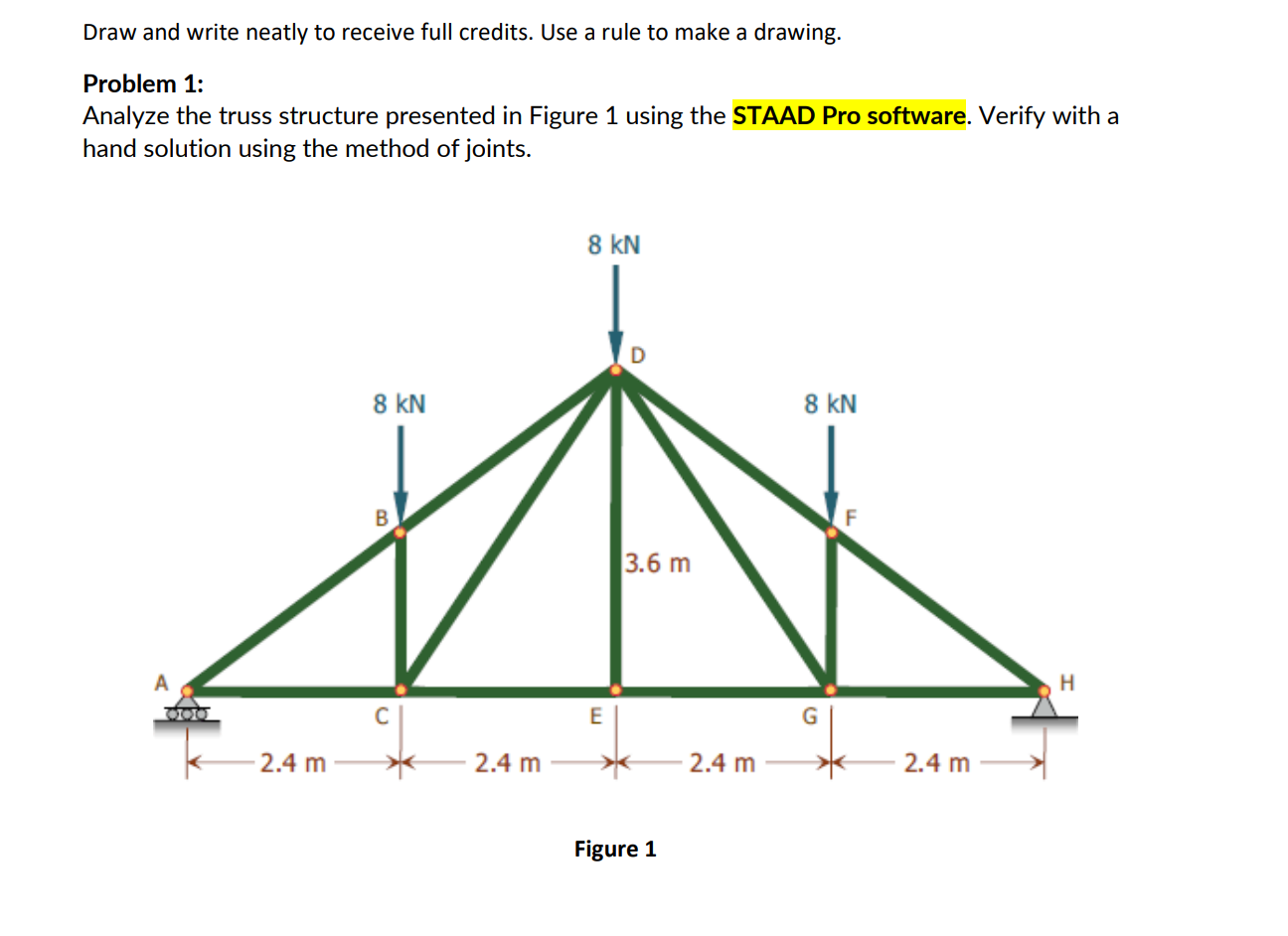

Draw and write neatly to receive full credits. Use a rule to make a drawing. Problem 1: Analyze the truss structure presented in Figure 1 using the STAAD Pro software. Verify with a hand solution using the method of joints. 8 KN 8 KN 8 KN B F 3.6 m H А 100 E G 2.4 m 2.4 m 2.4 m 2.4 m Figure 1
