Assgnmenti 2021E... Find х Convert Question 3 The bar shown in Fig. 7-26 is subjected to a repeated Moment Mmax = 23.5Nm

Post by answerhappygod »

1
1 (57.77 KiB) Viewed 92 times

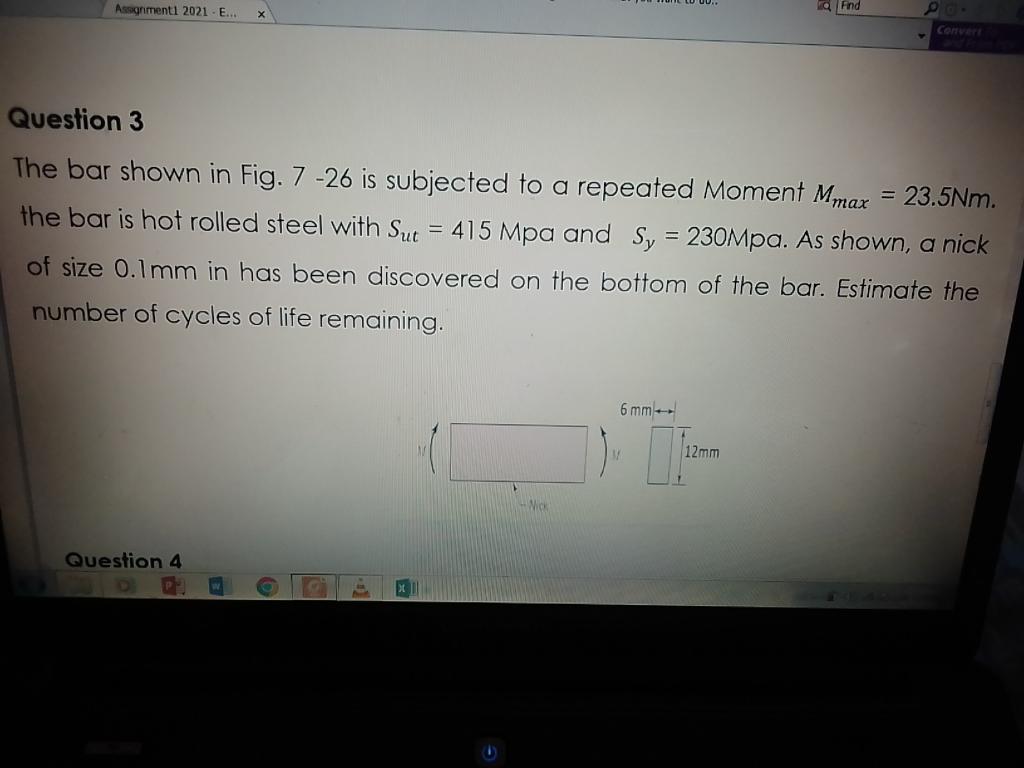

Assgnmenti 2021E... Find х Convert Question 3 The bar shown in Fig. 7-26 is subjected to a repeated Moment Mmax = 23.5Nm. the bar is hot rolled steel with Sut = 415 Mpa and Sy = 230Mpa. As shown, a nick of size 0.1mm in has been discovered on the bottom of the bar. Estimate the number of cycles of life remaining. 6mm CE 12mm Nick Question 4
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
