Water contained in a piston-cylinder assembly undergoes two processes in series from an initial state (state 1) where th

Post by answerhappygod »

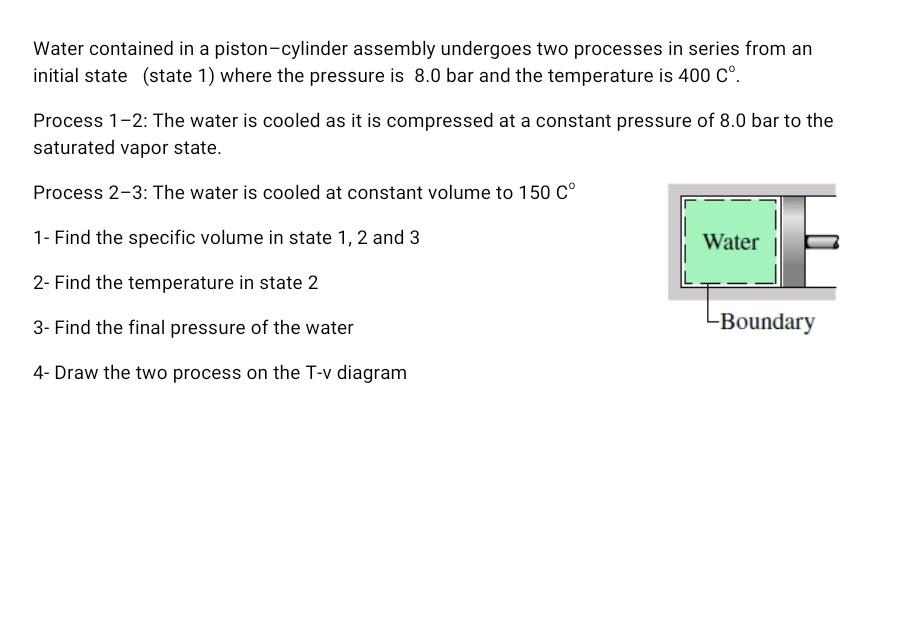

Water Contained In A Piston Cylinder Assembly Undergoes Two Processes In Series From An Initial State State 1 Where Th 1
Water Contained In A Piston Cylinder Assembly Undergoes Two Processes In Series From An Initial State State 1 Where Th 1 (50.08 KiB) Viewed 34 times
Water contained in a piston-cylinder assembly undergoes two processes in series from an initial state (state 1) where the pressure is 8.0 bar and the temperature is 400 Cº. Process 1-2: The water is cooled as it is compressed at a constant pressure of 8.0 bar to the saturated vapor state. Process 2-3: The water is cooled at constant volume to 150 C° 1- Find the specific volume in state 1, 2 and 3 Water 2- Find the temperature in state 2 3- Find the final pressure of the water LBoundary 4- Draw the two process on the T-v diagram
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
