. . o 5) During a performance test carried out on a 4-stroke, 4-cylinder SIE, the following data were collected: Brake p

[answerhappygod]

O 5 During A Performance Test Carried Out On A 4 Stroke 4 Cylinder Sie The Following Data Were Collected Brake P 1 (49.23 KiB) Viewed 36 times

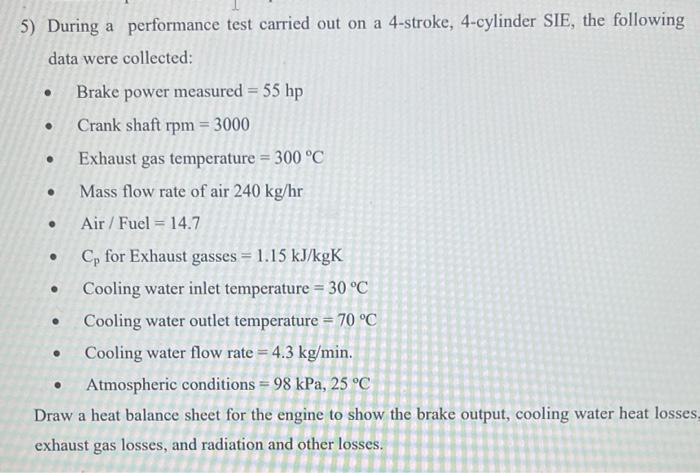

. . o 5) During a performance test carried out on a 4-stroke, 4-cylinder SIE, the following data were collected: Brake power measured = 55 hp Crank shaft rpm = 3000 Exhaust gas temperature = 300 °C Mass flow rate of air 240 kg/hr Air / Fuel = 14.7 Cp for Exhaust gasses = 1.15 kJ/kgK Cooling water inlet temperature = 30 °C Cooling water outlet temperature = 70 °C Cooling water flow rate = 4.3 kg/min. Atmospheric conditions = 98 kPa, 25 °C Draw a heat balance sheet for the engine to show the brake output, cooling water heat losses exhaust gas losses, and radiation and other losses. O - .
