PROBLEM 1 (50% of total marks) A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portio

Post by answerhappygod »

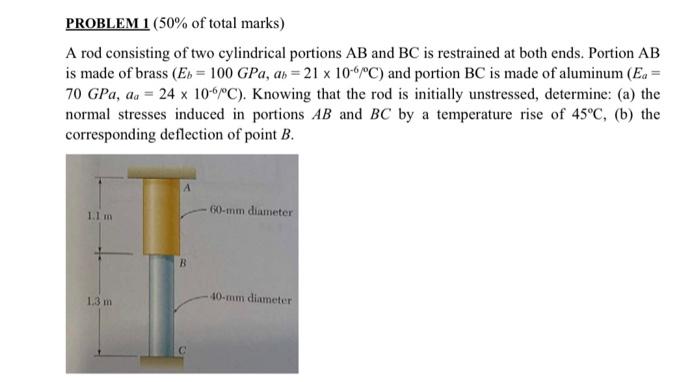

Problem 1 50 Of Total Marks A Rod Consisting Of Two Cylindrical Portions Ab And Bc Is Restrained At Both Ends Portio 1
Problem 1 50 Of Total Marks A Rod Consisting Of Two Cylindrical Portions Ab And Bc Is Restrained At Both Ends Portio 1 (27.59 KiB) Viewed 34 times
PROBLEM 1 (50% of total marks) A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of brass (En = 100 GPa, ab = 21 x 10-6°C) and portion BC is made of aluminum (Ea = 70 GPa, da = 24 x 10-6°C). Knowing that the rod is initially unstressed, determine: (a) the normal stresses induced in portions AB and BC by a temperature rise of 45°C, (b) the corresponding deflection of point B. 60-mm diameter 1.1 m B 1.3 m 10-mm diameter
