Air flows isentropically through a convergent divergent nozzle with a mass flow rate of 0.7 kg.s-1. The required Mach nu

Post by answerhappygod »

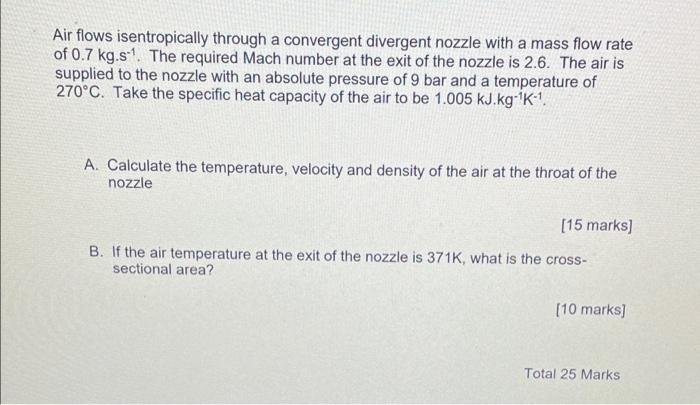

Air Flows Isentropically Through A Convergent Divergent Nozzle With A Mass Flow Rate Of 0 7 Kg S 1 The Required Mach Nu 1
Air Flows Isentropically Through A Convergent Divergent Nozzle With A Mass Flow Rate Of 0 7 Kg S 1 The Required Mach Nu 1 (43.48 KiB) Viewed 65 times
Air flows isentropically through a convergent divergent nozzle with a mass flow rate of 0.7 kg.s-1. The required Mach number at the exit of the nozzle is 2.6. The air is supplied to the nozzle with an absolute pressure of 9 bar and a temperature of 270°C. Take the specific heat capacity of the air to be 1.005 kJ.kg-K1. A. Calculate the temperature, velocity and density of the air at the throat of the nozzle [15 marks) B. If the air temperature at the exit of the nozzle is 371K, what is the cross- sectional area? [10 marks] Total 25 Marks
