A gas turbine operating a simple Brayton cycle operates between lower and upper temperatures of 303K and 1400K respectiv

[answerhappygod]

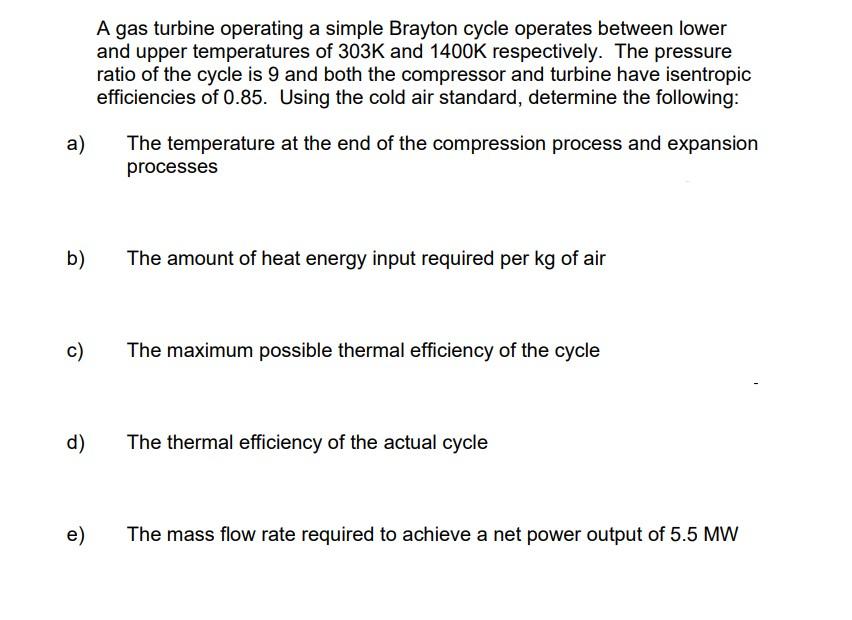

A Gas Turbine Operating A Simple Brayton Cycle Operates Between Lower And Upper Temperatures Of 303k And 1400k Respectiv 1 (56.88 KiB) Viewed 94 times

A gas turbine operating a simple Brayton cycle operates between lower and upper temperatures of 303K and 1400K respectively. The pressure ratio of the cycle is 9 and both the compressor and turbine have isentropic efficiencies of 0.85. Using the cold air standard, determine the following: a) The temperature at the end of the compression process and expansion processes b) The amount of heat energy input required per kg of air c) The maximum possible thermal efficiency of the cycle d) The thermal efficiency of the actual cycle e) The mass flow rate required to achieve a net power output of 5.5 MW
