To Hinge-Pins Heel The brake shown in Fig. 1 is R=170 mm inner radius of the drum and is actuated by two hydraulic pisto

Post by answerhappygod »

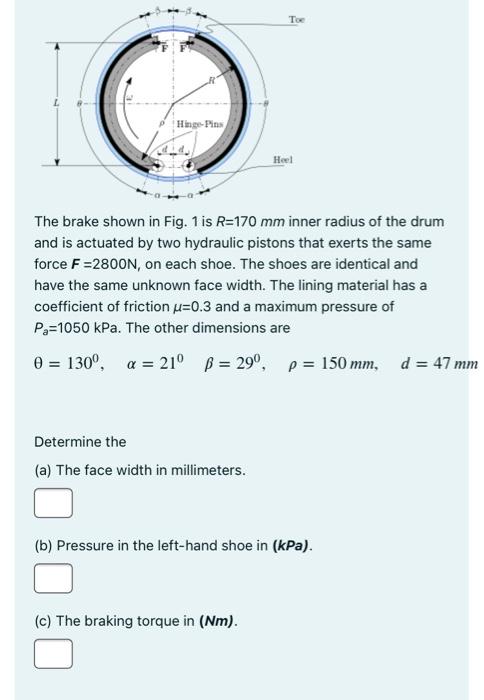

To Hinge Pins Heel The Brake Shown In Fig 1 Is R 170 Mm Inner Radius Of The Drum And Is Actuated By Two Hydraulic Pisto 1
To Hinge Pins Heel The Brake Shown In Fig 1 Is R 170 Mm Inner Radius Of The Drum And Is Actuated By Two Hydraulic Pisto 1 (37.44 KiB) Viewed 34 times
To Hinge-Pins Heel The brake shown in Fig. 1 is R=170 mm inner radius of the drum and is actuated by two hydraulic pistons that exerts the same force F=2800N, on each shoe. The shoes are identical and have the same unknown face width. The lining material has a coefficient of friction u=0.3 and a maximum pressure of Pa=1050 kPa. The other dimensions are 0 = 1300, a = 21° B = 290, p = 150 mm, d = 47 mm a = Determine the (a) The face width in millimeters. (b) Pressure in the left-hand shoe in (kPa). (c) The braking torque in (Nm).
