Question 2: (Sections 6.6 - 6.9: The Shear Center Concept) (20 points) A flanged semi-circular section shown in Figure 2

[answerhappygod]

Question 2 Sections 6 6 6 9 The Shear Center Concept 20 Points A Flanged Semi Circular Section Shown In Figure 2 1 (31.49 KiB) Viewed 45 times

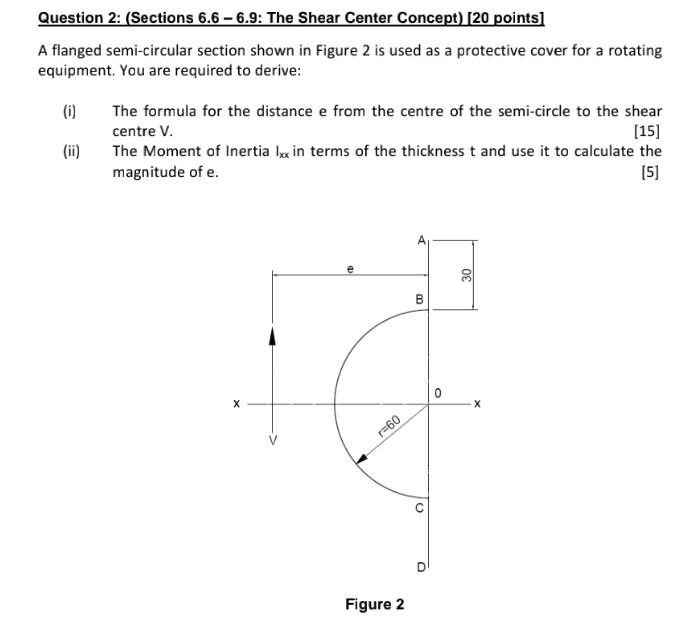

Question 2: (Sections 6.6 - 6.9: The Shear Center Concept) (20 points) A flanged semi-circular section shown in Figure 2 is used as a protective cover for a rotating equipment. You are required to derive: (1) The formula for the distance e from the centre of the semi-circle to the shear centre V. The Moment of Inertia lxx in terms of the thickness t and use it to calculate the magnitude of e. [5] (15) (ii) 30 B B 0 х х r=60 D Figure 2
