A Howe truss has the dimensions and external loads as shown on the figure below. 80 KN 120 KN B 3 m E G 200 KN 4 Panels

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A Howe truss has the dimensions and external loads as shown on the figure below. 80 KN 120 KN B 3 m E G 200 KN 4 Panels

Post by answerhappygod »

A Howe Truss Has The Dimensions And External Loads As Shown On The Figure Below 80 Kn 120 Kn B 3 M E G 200 Kn 4 Panels 1
A Howe Truss Has The Dimensions And External Loads As Shown On The Figure Below 80 Kn 120 Kn B 3 M E G 200 Kn 4 Panels 1 (287.73 KiB) Viewed 35 times

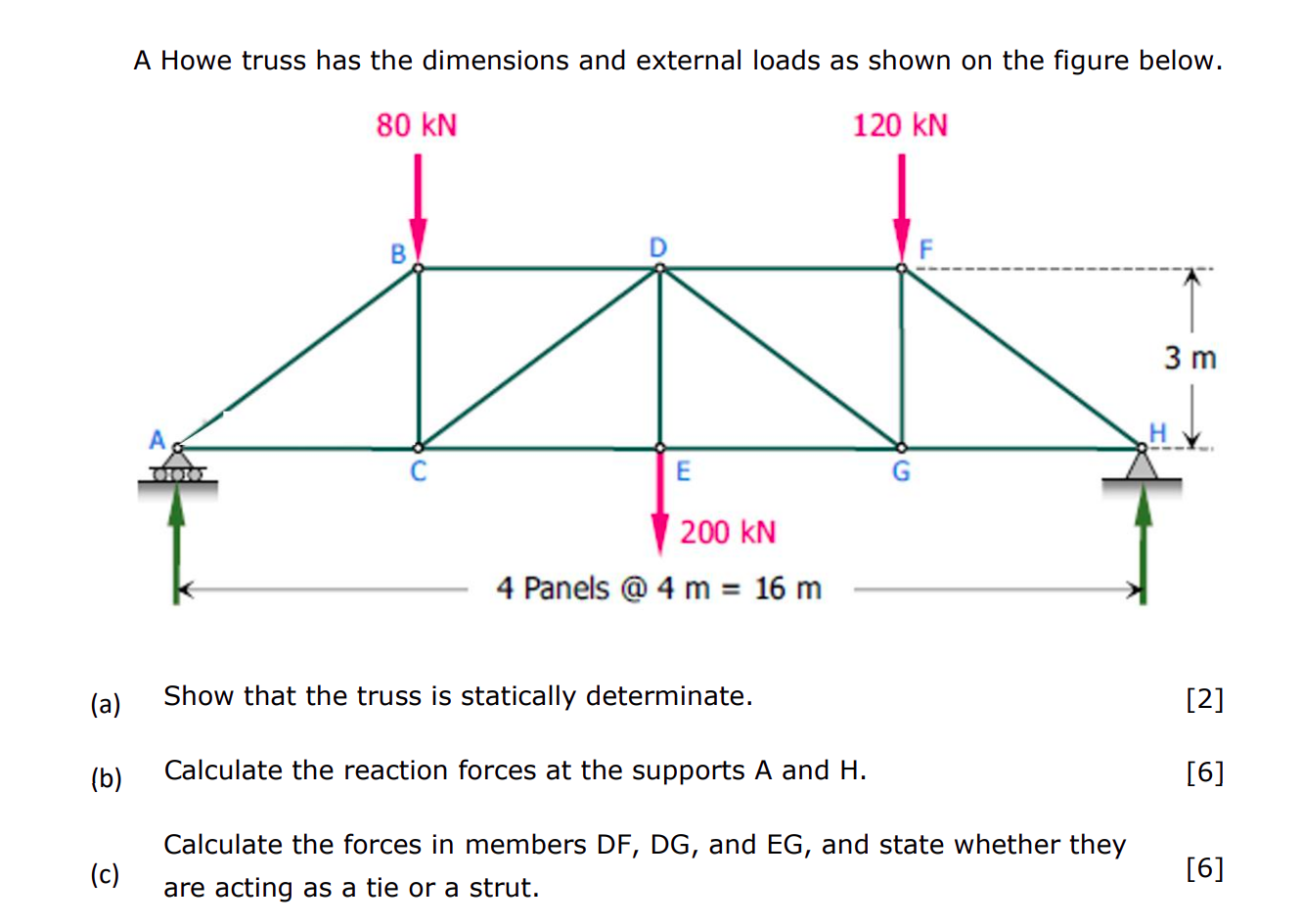

A Howe truss has the dimensions and external loads as shown on the figure below. 80 KN 120 KN B 3 m E G 200 KN 4 Panels @ 4 m = 16 m = (a) Show that the truss is statically determinate. [2] (b) Calculate the reaction forces at the supports A and H. [6] (c) Calculate the forces in members DF, DG, and EG, and state whether they are acting as a tie or a strut. [6]
