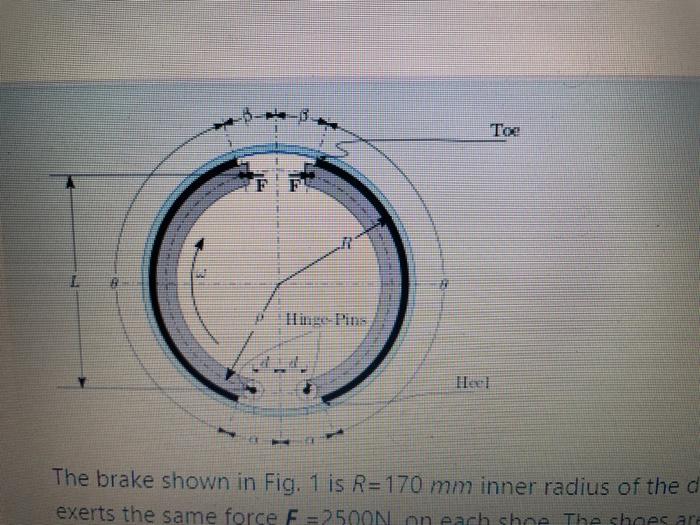

Tee © Heel The brake shown in Fig. 1 is R=170 mm inner radius of the d exerts the same force F = 2500N on each shoe The shoes are

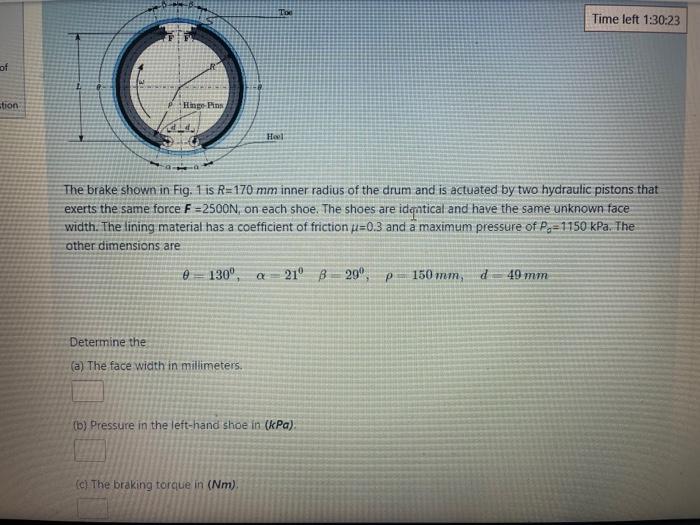

Time left 1:30:23 of stion Hinge Pins Het The brake shown in Fig. 1 is R=170 mm inner radius of the drum and is actuated by two hydraulic pistons that exerts the same force F =2500N, on each shoe. The shoes are identical and have the same unknown face width. The lining material has a coefficient of friction u=0.3 and a maximum pressure of Po=1150 kPa. The other dimensions are 0 = 1300 CE 210829 P 150 mm, d 49 mm Determine the (a) The face width in millimeters. (b) Pressure in the left-hand shoe in (kPa). (c) The braking torque in (Nm).
