17. A simply supported carries point load of 5 kN at 2 m from either ends and a centre point load of 10 kN as shown in t

Post by answerhappygod »

17 A Simply Supported Carries Point Load Of 5 Kn At 2 M From Either Ends And A Centre Point Load Of 10 Kn As Shown In T 1
17 A Simply Supported Carries Point Load Of 5 Kn At 2 M From Either Ends And A Centre Point Load Of 10 Kn As Shown In T 1 (23.73 KiB) Viewed 31 times

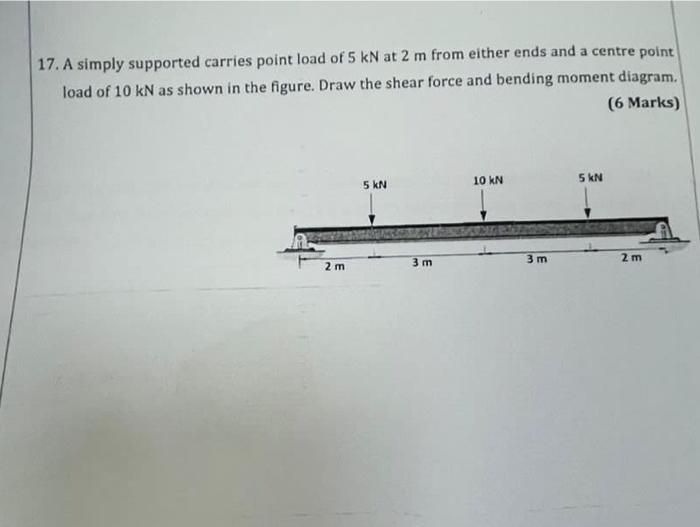

17. A simply supported carries point load of 5 kN at 2 m from either ends and a centre point load of 10 kN as shown in the figure. Draw the shear force and bending moment diagram. (6 Marks) 5 KN 10 KN 5 KN 3 m 2 m 2 m 3 m
