Multiple-stage Amplifier without Feedback (30) In the following integrated BJT multistage circuit, Vcc = 10.7V. The comm

[answerhappygod]

Multiple Stage Amplifier Without Feedback 30 In The Following Integrated Bjt Multistage Circuit Vcc 10 7v The Comm 1 (39.36 KiB) Viewed 21 times

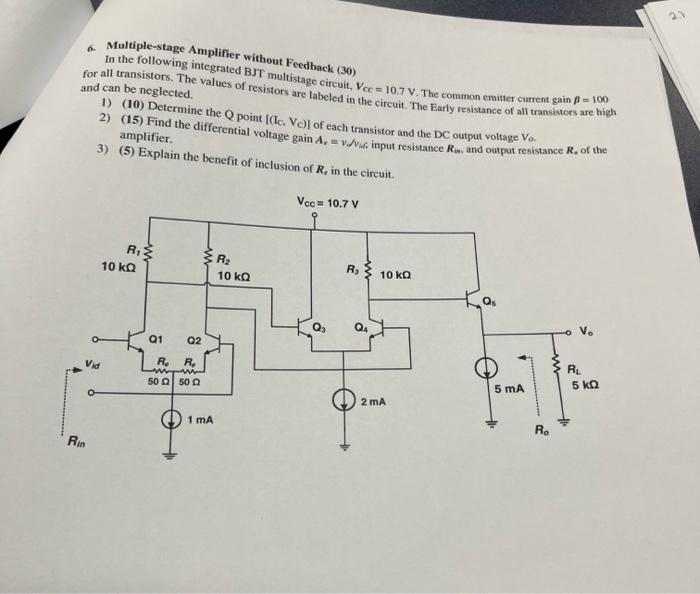

Multiple-stage Amplifier without Feedback (30) In the following integrated BJT multistage circuit, Vcc = 10.7V. The common emitter current gain fs = for all transistors. The values of resistors are labeled in the circuit. The early resistance of all transistors are high and can be neglected of transistor DC output voltage 2) (15) Find the differential voltage gain A cache pour input resistance Ran and output resistance R. of the amplifier. 3) (5) Explain the benefit of inclusion of Re in the circuit. Vcc= 10.7 V RS 10 ko RE 10 ko R 10 ΚΩ Kas Q4 V. 01 Q2 Vid RO R WW 50 50 RL 5 ko 5 mA 2 mA 1 mA R. Rin
