(5 points) Find the power of each circuit element. You must show the voltage across (with polarity) and current through
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(5 points) Find the power of each circuit element. You must show the voltage across (with polarity) and current through

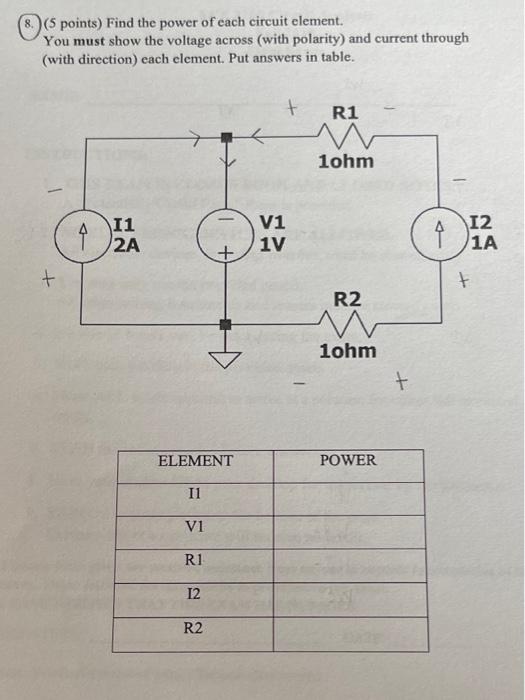

(5 points) Find the power of each circuit element. You must show the voltage across (with polarity) and current through (with direction) each element. Put answers in table. + R1 M. 1ohm 11 2A V1 1V q 12 1A + + + R2 1ohm + ELEMENT POWER 11 Vi R1 12 R2
