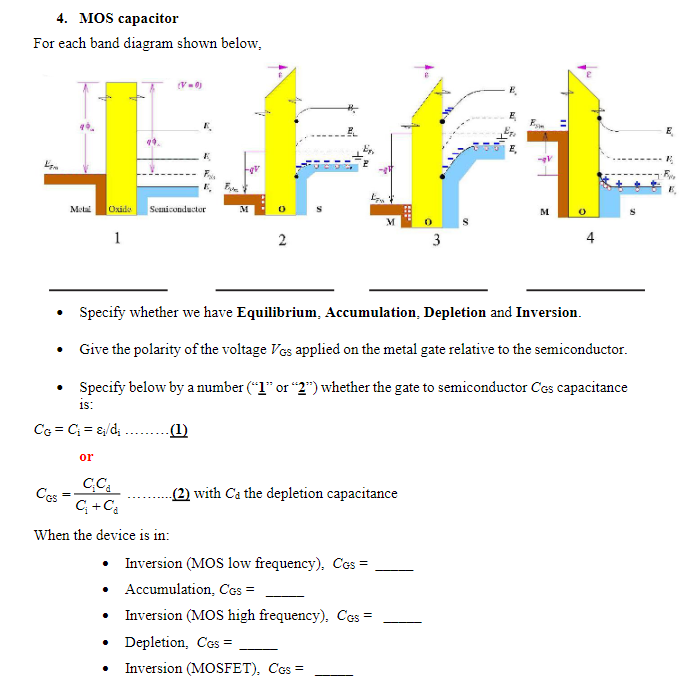

4. MOS capacitor For each band diagram shown below, (V.) F E E Le F Metal Oxide Seoniconductor M 0 M 0 M S 1 2 3 4 Speci

[answerhappygod]

4 Mos Capacitor For Each Band Diagram Shown Below V F E E Le F Metal Oxide Seoniconductor M 0 M 0 M S 1 2 3 4 Speci 1 (104.33 KiB) Viewed 32 times

4. MOS capacitor For each band diagram shown below, (V.) F E E Le F Metal Oxide Seoniconductor M 0 M 0 M S 1 2 3 4 Specify whether we have Equilibrium. Accumulation. Depletion and Inversion. Give the polarity of the voltage VGs applied on the metal gate relative to the semiconductor. Specify below by a number ("1" or "2") whether the gate to semiconductor Ces capacitance 15: Co= C = x;/d. (1) or Cos СС. (2) with Ca the depletion capacitance C+Cc When the device is in: • Inversion (MOS low frequency). Cos = • Accumulation. Cos = Inversion (MOS high frequency). Ces = • Depletion. Ces = Inversion (MOSFET), Cos = =
