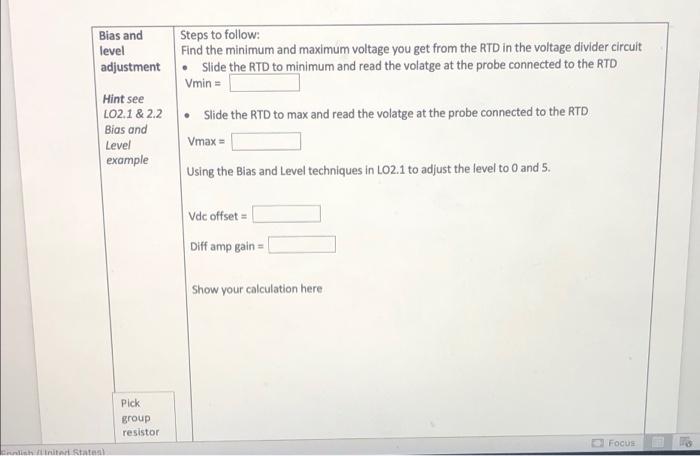

Bias and Steps to follow: level Find the minimum and maximum voltage you get from the RTD in the voltage divider circuit adjustment • Slide the RTD to minimum and read the volatge at the probe connected to the RTD Vmin = Hint see L02.1&2.2 • Slide the RTD to max and read the volatge at the probe connected to the RTD Bias and Vmax = example Using the Bias and Level techniques in L02.1 to adjust the level to 0 and 5. Level Vdc offset Diff amp gain Show your calculation here Pick group resistor Focus Gunnar Staal
