2. Consider a Sip-njunction with Na=2 x 104 cm, area = 0.005 cm². Calculate the capacitance at a reverse bias of 1, 5, a

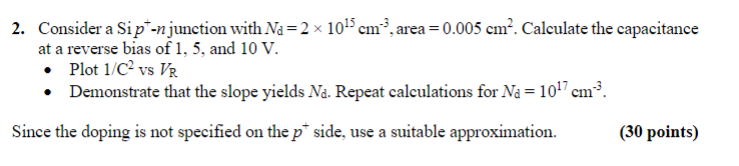

2. Consider a Sip-njunction with Na=2 x 104 cm, area = 0.005 cm². Calculate the capacitance at a reverse bias of 1, 5, and 10 V. • Plot 1/C vs VR • Demonstrate that the slope yields Na. Repeat calculations for Na = 104 cm-?. Since the doping is not specified on the p side, use a suitable approximation. (30 points)
