A universal motor is driven by a single thyristor from an AC supply of 220V at 50Hz. Total field and armature resistance

Post by answerhappygod »

A Universal Motor Is Driven By A Single Thyristor From An Ac Supply Of 220v At 50hz Total Field And Armature Resistance 1
A Universal Motor Is Driven By A Single Thyristor From An Ac Supply Of 220v At 50hz Total Field And Armature Resistance 1 (26.09 KiB) Viewed 22 times

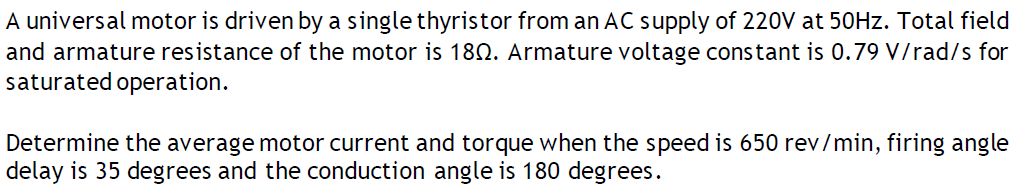

A universal motor is driven by a single thyristor from an AC supply of 220V at 50Hz. Total field and armature resistance of the motor is 181. Armature voltage constant is 0.79 V/rad/s for saturated operation. Determine the average motor current and torque when the speed is 650 rev/min, firing angle delay is 35 degrees and the conduction angle is 180 degrees.
