A burst controlled AC regulator is feeding a 200 ohm resistive load. The AC supply providing 240 V rms voltage at 60Hz.

Post by answerhappygod »

A Burst Controlled Ac Regulator Is Feeding A 200 Ohm Resistive Load The Ac Supply Providing 240 V Rms Voltage At 60hz 1
A Burst Controlled Ac Regulator Is Feeding A 200 Ohm Resistive Load The Ac Supply Providing 240 V Rms Voltage At 60hz 1 (27.59 KiB) Viewed 24 times

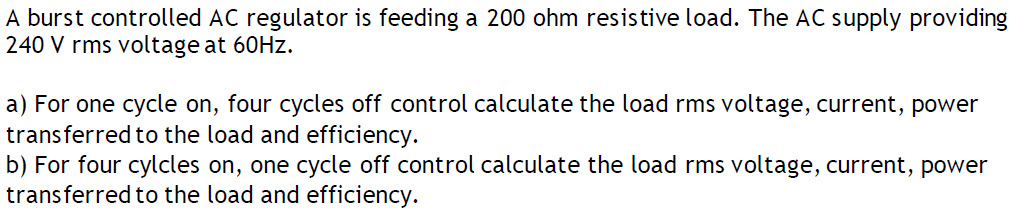

A burst controlled AC regulator is feeding a 200 ohm resistive load. The AC supply providing 240 V rms voltage at 60Hz. a) For one cycle on, four cycles off control calculate the load rms voltage, current, power transferred to the load and efficiency. b) For four cylcles on, one cycle off control calculate the load rms voltage, current, power transferred to the load and efficiency.
