A 500-V. 50-hp. 60 Hz. four-pole. Y-connected induction motor has the following impedances in ohms per phase referred to

Post by answerhappygod »

A 500 V 50 Hp 60 Hz Four Pole Y Connected Induction Motor Has The Following Impedances In Ohms Per Phase Referred To 1
A 500 V 50 Hp 60 Hz Four Pole Y Connected Induction Motor Has The Following Impedances In Ohms Per Phase Referred To 1 (44.78 KiB) Viewed 29 times

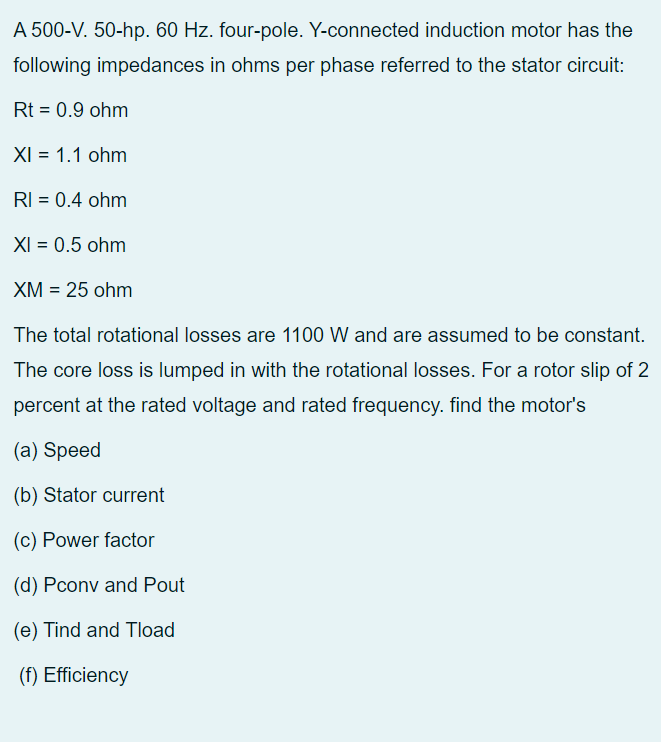

A 500-V. 50-hp. 60 Hz. four-pole. Y-connected induction motor has the following impedances in ohms per phase referred to the stator circuit: Rt = 0.9 ohm XI = 1.1 ohm RI = 0.4 ohm XI = 0.5 ohm XM = 25 ohm The total rotational losses are 1100 W and are assumed to be constant. The core loss is lumped in with the rotational losses. For a rotor slip of 2 percent at the rated voltage and rated frequency. find the motor's (a) Speed (b) Stator current (c) Power factor (d) Pcony and Pout (e) Tind and Tload (f) Efficiency
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
