2-3 Three parallel three-phase loads are supplied from a 380V ims, 60-Hz three-phase supply. The loads are as follows (3

[answerhappygod]

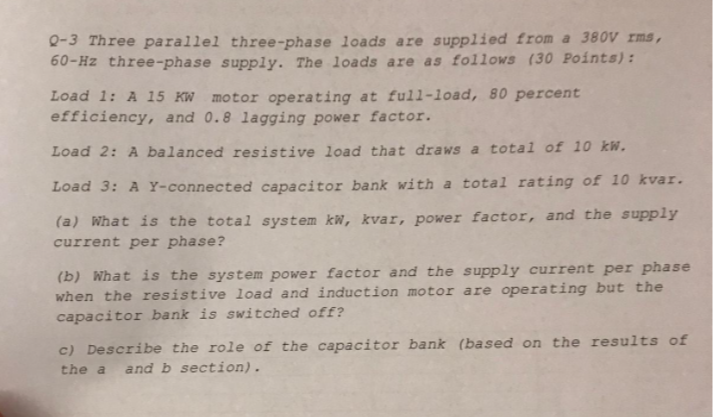

2 3 Three Parallel Three Phase Loads Are Supplied From A 380v Ims 60 Hz Three Phase Supply The Loads Are As Follows 3 1 (400.06 KiB) Viewed 20 times

2-3 Three parallel three-phase loads are supplied from a 380V ims, 60-Hz three-phase supply. The loads are as follows (30 points): Load 1: A 15 KW motor operating at full-load, 80 percent efficiency, and 0.8 lagging power factor. Load 2: A balanced resistive load that draws a total of 10 kw. Load 3: A Y-connected capacitor bank with a total rating of 10 kvar. (a) What is the total system kw, kvar, power factor, and the supply current per phase? (b) What is the system power factor and the supply current per phase when the resistive load and induction motor are operating but the capacitor bank is switched off? c) Describe the role of the capacitor bank (based on the results of the a and b section).
