Q3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: Vip=-1V Kp=0.5
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: Vip=-1V Kp=0.5

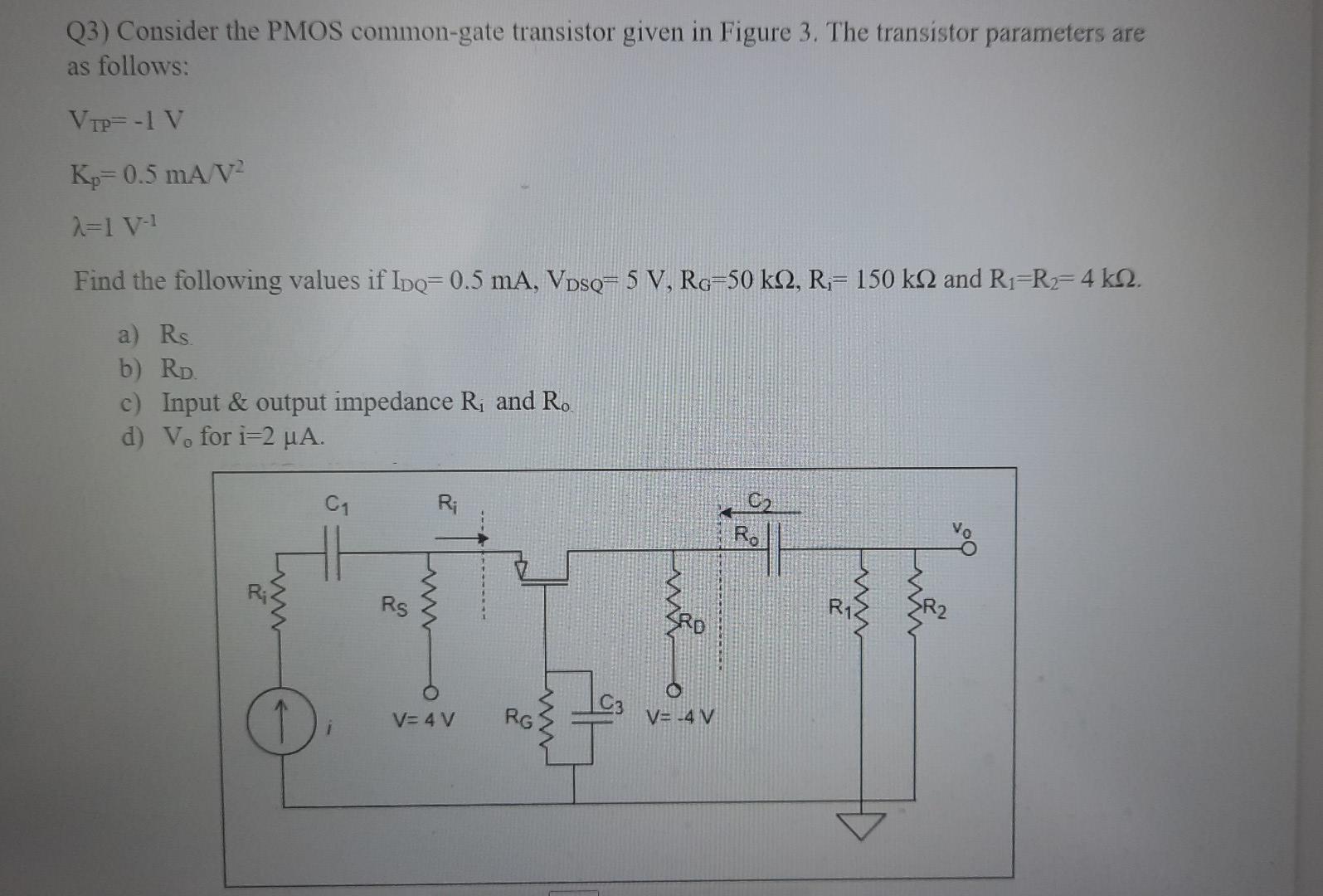

Q3) Consider the PMOS common-gate transistor given in Figure 3. The transistor parameters are as follows: Vip=-1V Kp=0.5 mA/V2 a=1 Find the following values if Ipo= 0.5 mA, VDSQ= 5 V, Ro=50 k12, R;= 150 kO2 and Ri=R2= 4k12. a) Rs b) Rp. c) Input & output impedance Ri and R. d) V. for i=2 uA. C1 vo R. RS w C3 V=4V RG V= -4V
