Question 4 4 Marks For The Following Circuit A Find The Norton S Equivalent Between Nodes A And B B Find The Thev 1 (72.74 KiB) Viewed 24 times
W=60,X=56,Y=0,Z=220

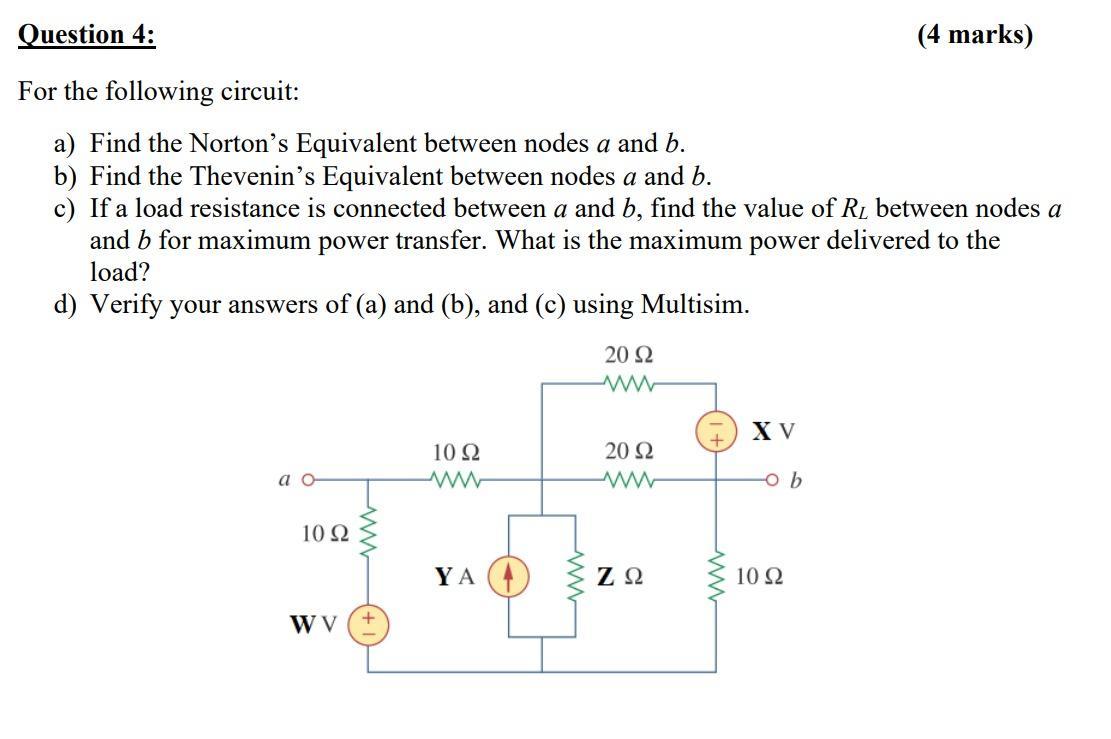

Question 4: (4 marks) For the following circuit: a) Find the Norton's Equivalent between nodes a and b. b) Find the Thevenin's Equivalent between nodes a and b. c) If a load resistance is connected between a and b, find the value of Rz between nodes a and b for maximum power transfer. What is the maximum power delivered to the load? d) Verify your answers of (a) and (b), and (c) using Multisim. 20 Ω XV 10 Ω 20 Ω 1 ao- -ob 10 22 YA ΖΩ 10 22 w WV
