(c) Find the closed-loop transfer function, C(s)/R(S) for the system shown in Figure Q3 using block diagram reduction if

Post by answerhappygod »

C Find The Closed Loop Transfer Function C S R S For The System Shown In Figure Q3 Using Block Diagram Reduction If 1
C Find The Closed Loop Transfer Function C S R S For The System Shown In Figure Q3 Using Block Diagram Reduction If 1 (153.85 KiB) Viewed 33 times

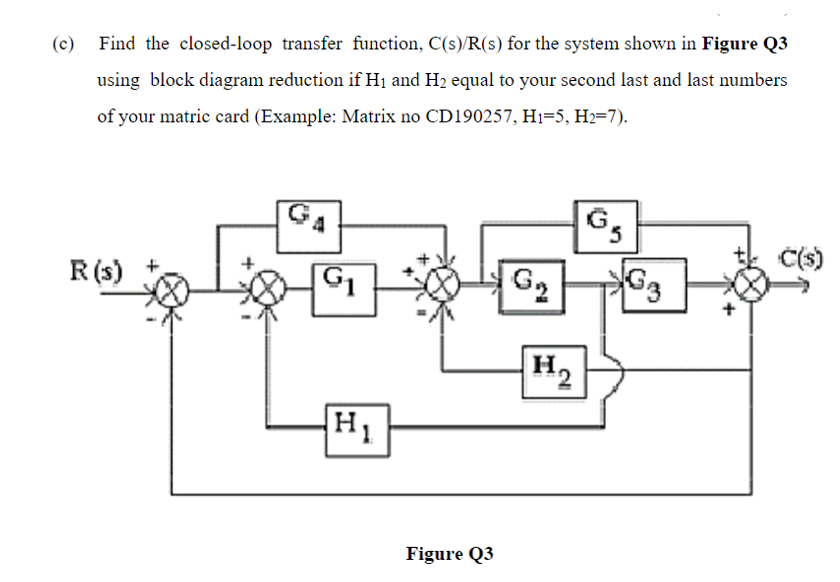

(c) Find the closed-loop transfer function, C(s)/R(S) for the system shown in Figure Q3 using block diagram reduction if Hį and H2 equal to your second last and last numbers of your matric card (Example: Matrix no CD190257, Hi=5, H2=7). GA 6. G3 R(s) C(s) G1 G2 H2 HI Figure Q3
