VI. In the circuit of the given figure, how much current will flow through the 15-ohm resistor? W 10 AF 10 10 w VII. The

Post by answerhappygod »

Vi In The Circuit Of The Given Figure How Much Current Will Flow Through The 15 Ohm Resistor W 10 Af 10 10 W Vii The 1
Vi In The Circuit Of The Given Figure How Much Current Will Flow Through The 15 Ohm Resistor W 10 Af 10 10 W Vii The 1 (54.68 KiB) Viewed 33 times

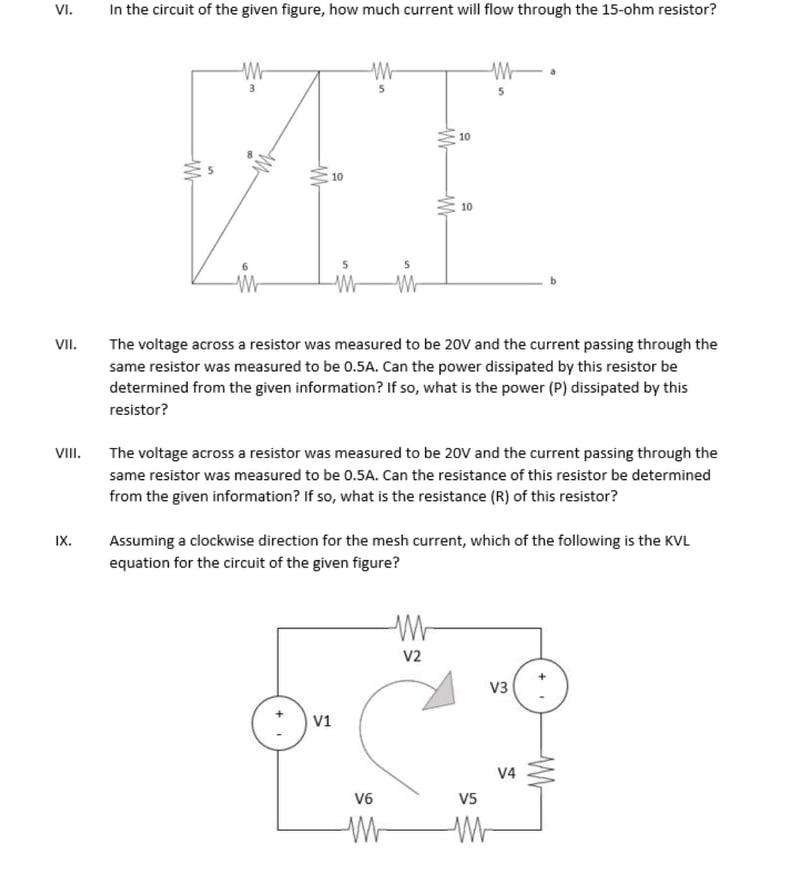

VI. In the circuit of the given figure, how much current will flow through the 15-ohm resistor? W 10 AF 10 10 w VII. The voltage across a resistor was measured to be 20V and the current passing through the same resistor was measured to be 0.5A. Can the power dissipated by this resistor be determined from the given information? If so, what is the power (P) dissipated by this resistor? VIII. The voltage across a resistor was measured to be 20V and the current passing through the same resistor was measured to be 0.5A. Can the resistance of this resistor be determined from the given information? If so, what is the resistance (R) of this resistor? IX. Assuming a clockwise direction for the mesh current, which of the following is the KVL equation for the circuit of the given figure? W V2 V3 V1 v4 M V6 V5 M M
