For the circuit shown below in the given figure, what should be the source resistance (Rs) so that maximum power is deli

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown below in the given figure, what should be the source resistance (Rs) so that maximum power is deli

Post by answerhappygod »

For The Circuit Shown Below In The Given Figure What Should Be The Source Resistance Rs So That Maximum Power Is Deli 1
For The Circuit Shown Below In The Given Figure What Should Be The Source Resistance Rs So That Maximum Power Is Deli 1 (41.88 KiB) Viewed 26 times

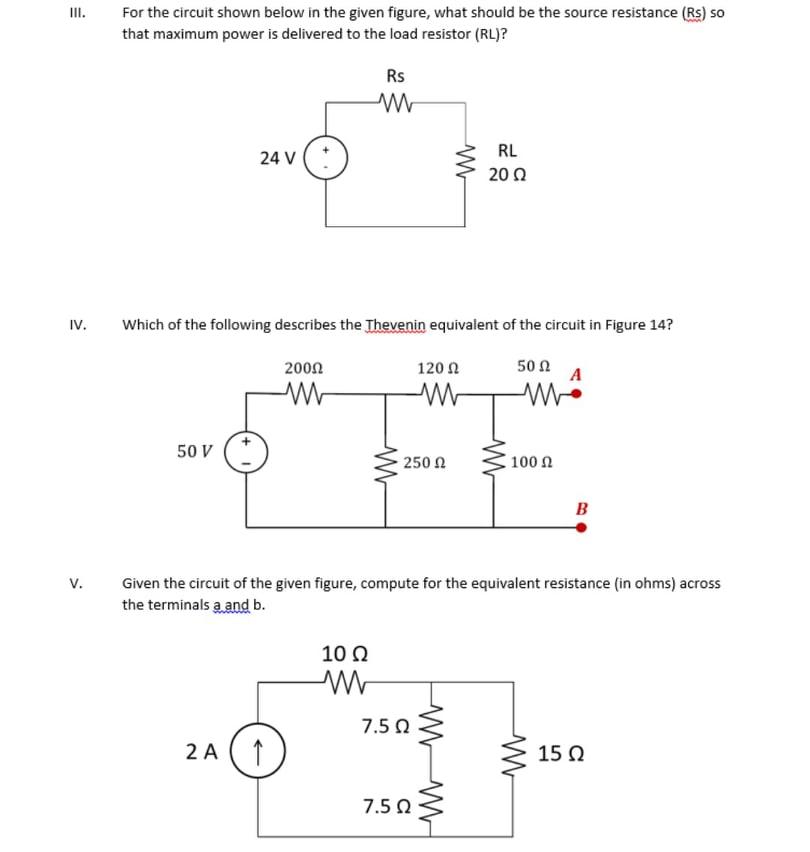

For the circuit shown below in the given figure, what should be the source resistance (Rs) so that maximum power is delivered to the load resistor (RL)? RS M 24 V M RL 20 Ω IV. Which of the following describes the Thevenin equivalent of the circuit in Figure 14? 200Ω 50 Ω 120 Ω M 50 V 2502 100 Ω B v. Given the circuit of the given figure, compute for the equivalent resistance in ohms) across the terminals a and b. 10 22 M 7.5Ω 2A ( 1 mm 15 Ω 7.5Ω
