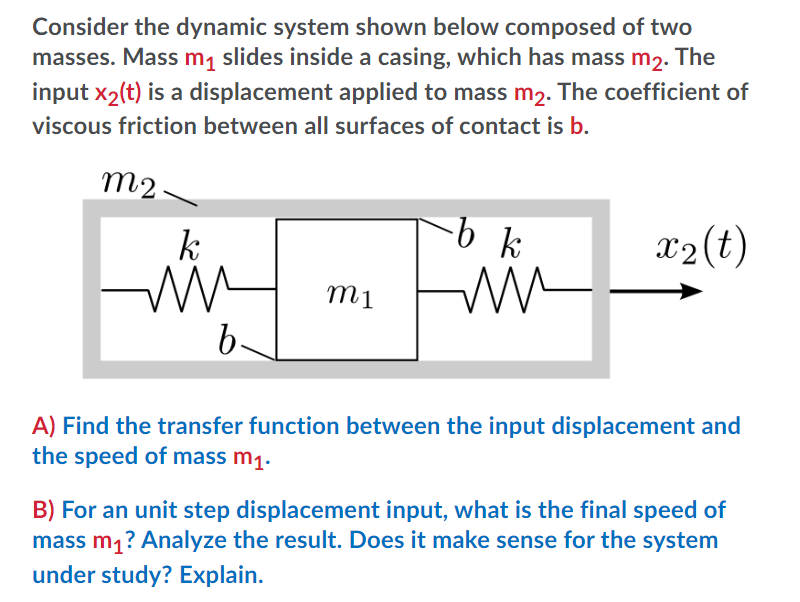

Consider the dynamic system shown below composed of two masses. Mass my slides inside a casing, which has mass m2. The input x2(t) is a displacement applied to mass m2. The coefficient of viscous friction between all surfaces of contact is b. m2 k bk x2(t) Ferie mi M b- A) Find the transfer function between the input displacement and the speed of mass m1. B) For an unit step displacement input, what is the final speed of mass m ? Analyze the result. Does it make sense for the system under study? Explain.
