Consider the bridge circuit given below, where V = 270 V. 2 k2 w 3 k22 6 k92 V bo 5 k.12 w 10 kΩ If the 10-k resistor is

Post by answerhappygod »

1
1 (22.52 KiB) Viewed 36 times

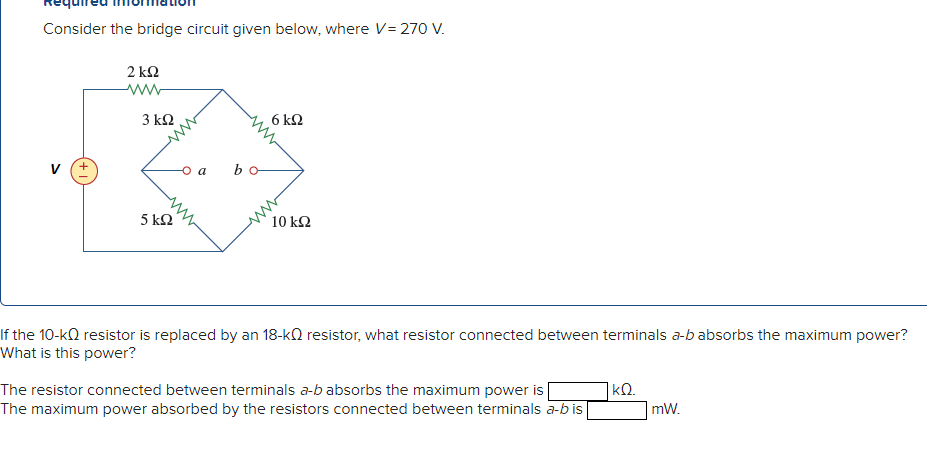

Consider the bridge circuit given below, where V = 270 V. 2 k2 w 3 k22 6 k92 V bo 5 k.12 w 10 kΩ If the 10-k resistor is replaced by an 18-k resistor, what resistor connected between terminals a-b absorbs the maximum power? What is this power? The resistor connected between terminals a-b absorbs the maximum power is ΚΩ. The maximum power absorbed by the resistors connected between terminals a-bis | mW.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
