A 30 MVA, 17,5 kV three-phase synchoronous generator with 0,4 pu synchronous reactance (Xs) and negligible resistance is

Post by answerhappygod »

A 30 Mva 17 5 Kv Three Phase Synchoronous Generator With 0 4 Pu Synchronous Reactance Xs And Negligible Resistance Is 1
A 30 Mva 17 5 Kv Three Phase Synchoronous Generator With 0 4 Pu Synchronous Reactance Xs And Negligible Resistance Is 1 (33.54 KiB) Viewed 43 times

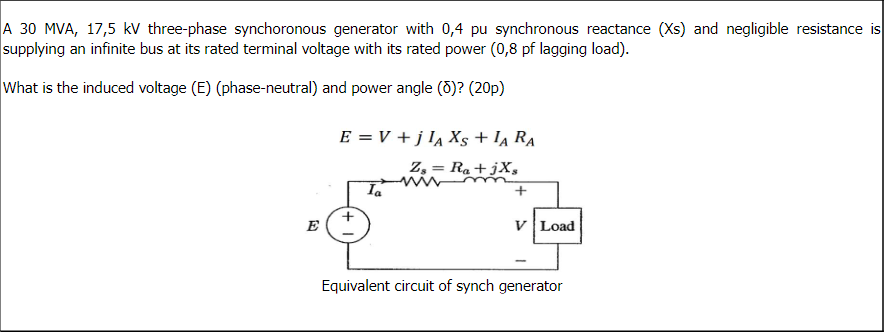

A 30 MVA, 17,5 kV three-phase synchoronous generator with 0,4 pu synchronous reactance (Xs) and negligible resistance is supplying an infinite bus at its rated terminal voltage with its rated power (0,8 pf lagging load). What is the induced voltage (E) (phase-neutral) and power angle (5)? (20p) E = V + j A Xs + IA RA Z, = Ra+jx, w Іa + E V Load Equivalent circuit of synch generator
