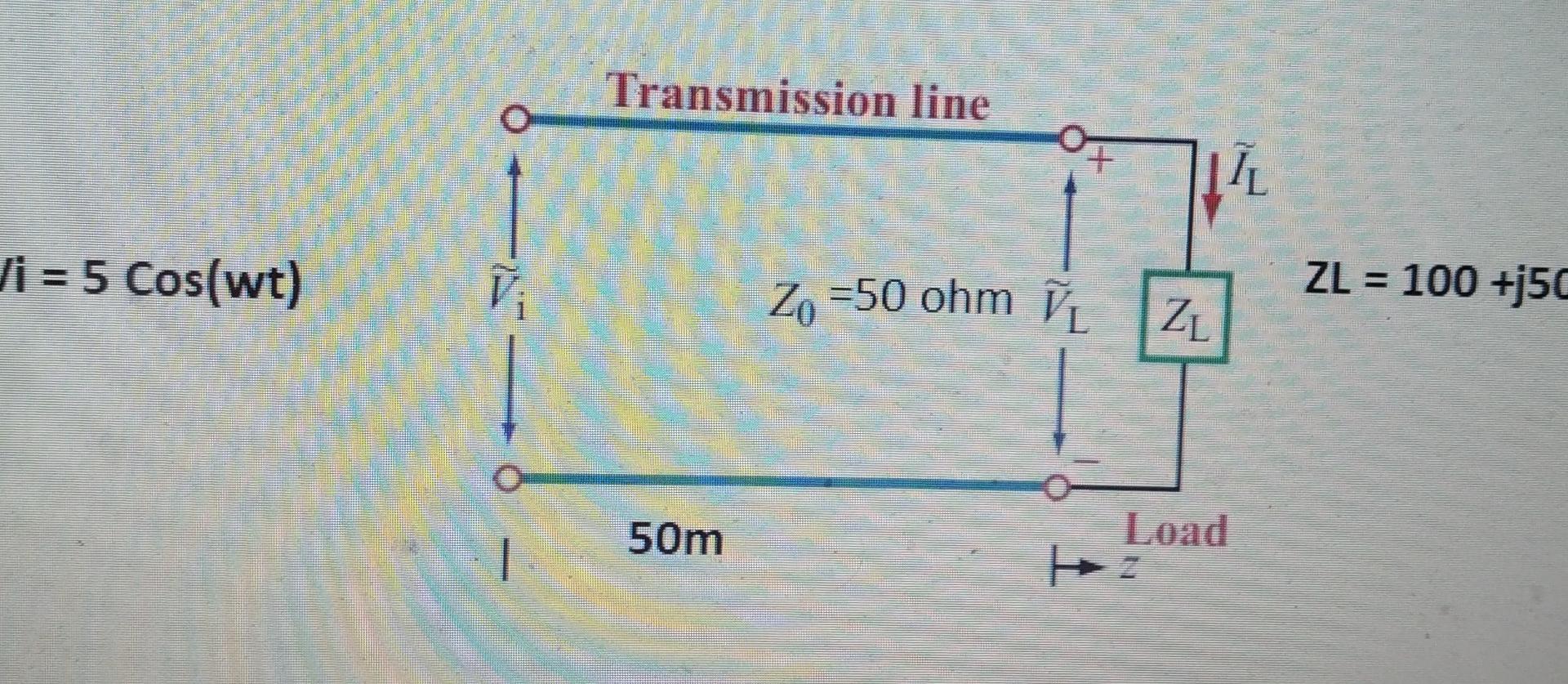

Transmission line 1 Vi = 5 Cos(wt) V Zo =50 ohm z ZL ZL = 100 +j50 50m Load QUESTION 4 For the transsmision line below

Post by **answerhappygod** » Wed Apr 27, 2022 6:12 pm

: Transmission Line 1 Vi 5 Cos Wt V Zo 50 Ohm Z Zl Zl 100 J50 50m Load Question 4 For The Transsmision Line Below 1 (338.53 KiB) Viewed 33 times

: Transmission Line 1 Vi 5 Cos Wt V Zo 50 Ohm Z Zl Zl 100 J50 50m Load Question 4 For The Transsmision Line Below 2 (130.68 KiB) Viewed 33 times

: Transmission Line 1 Vi 5 Cos Wt V Zo 50 Ohm Z Zl Zl 100 J50 50m Load Question 4 For The Transsmision Line Below 3 (498.2 KiB) Viewed 33 times

: Transmission Line 1 Vi 5 Cos Wt V Zo 50 Ohm Z Zl Zl 100 J50 50m Load Question 4 For The Transsmision Line Below 4 (580.85 KiB) Viewed 33 times

Transmission line 1 Vi = 5 Cos(wt) V Zo =50 ohm z ZL ZL = 100 +j50 50m Load

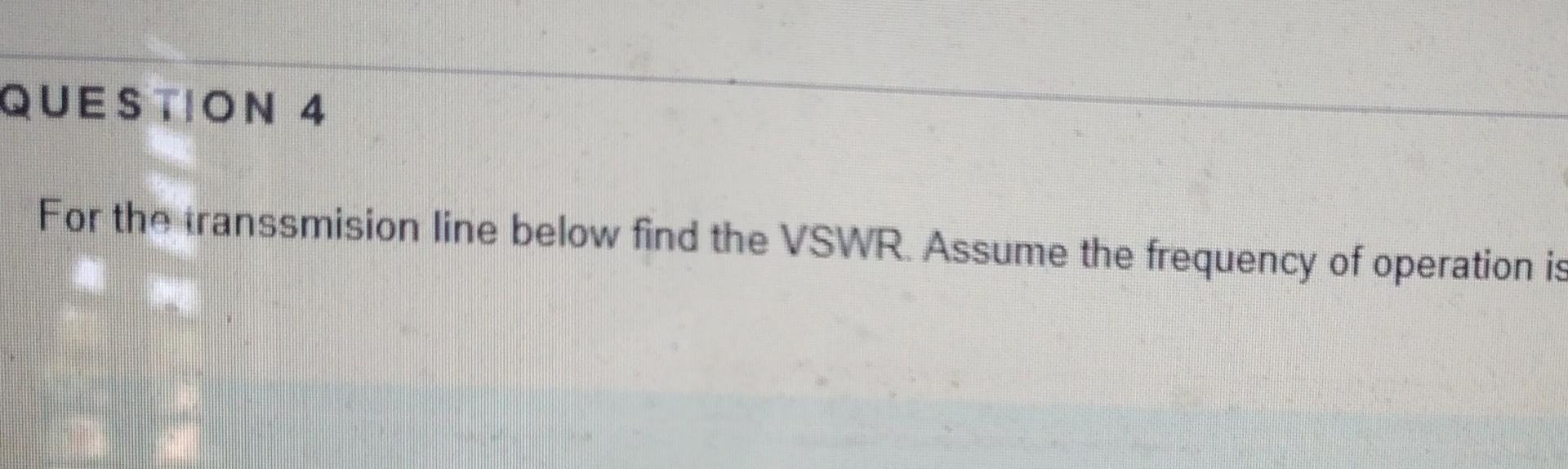

QUESTION 4 For the transsmision line below find the VSWR Assume the frequency of operation is

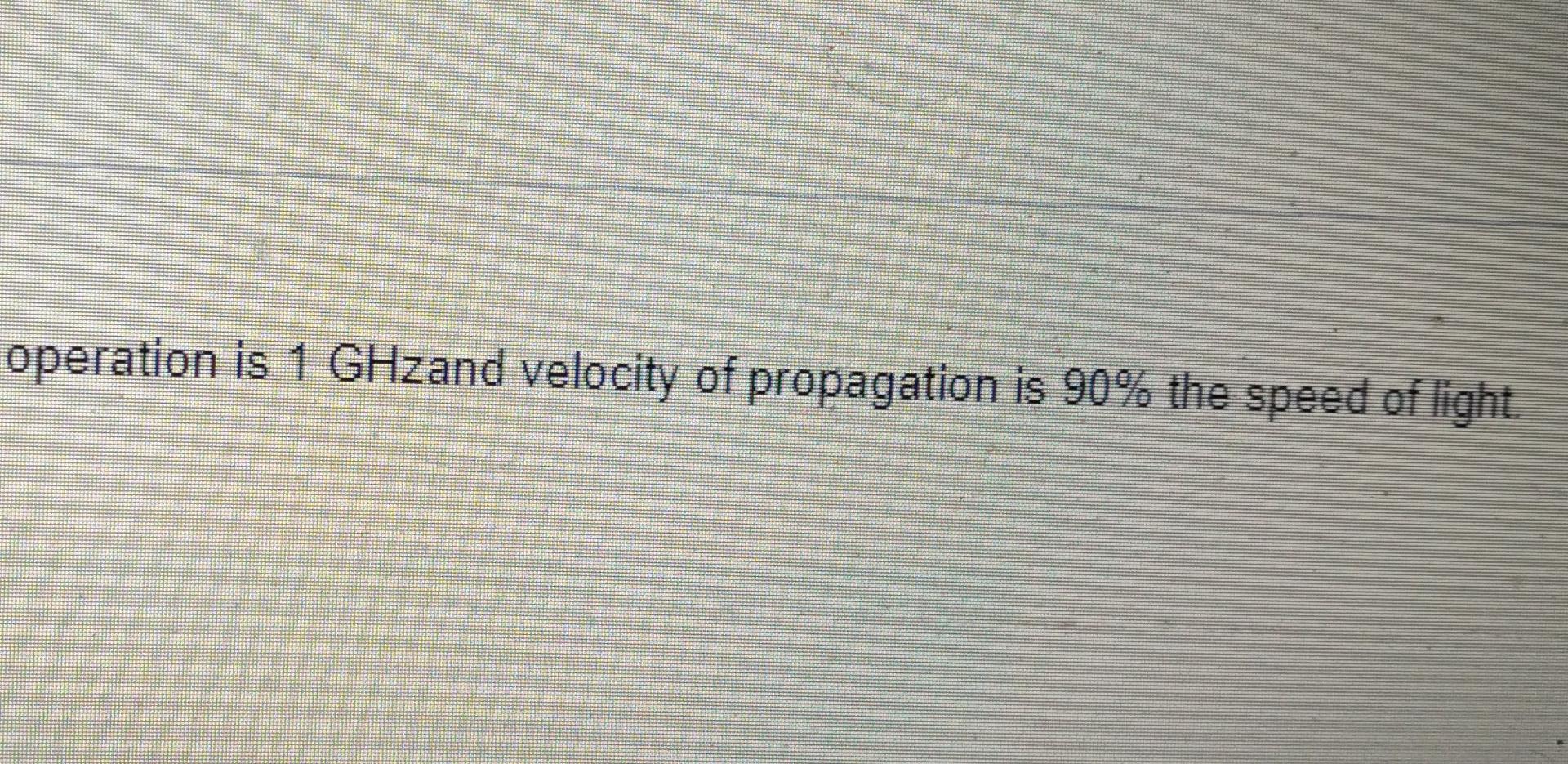

operation is 1 GHzand velocity of propagation is 90% the speed of light

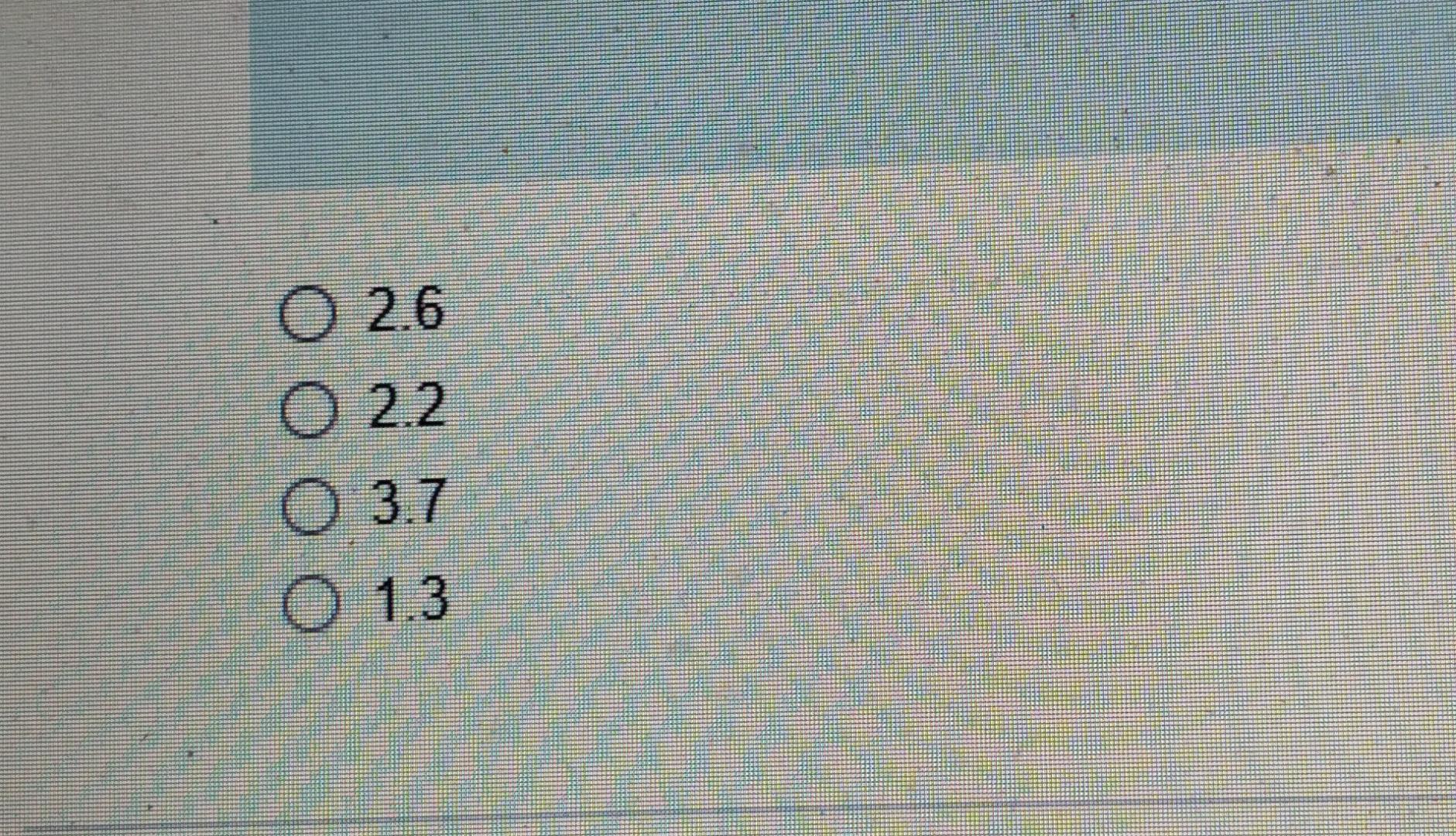

O 2.6 O 2.2 O 3.7 O 1.3
