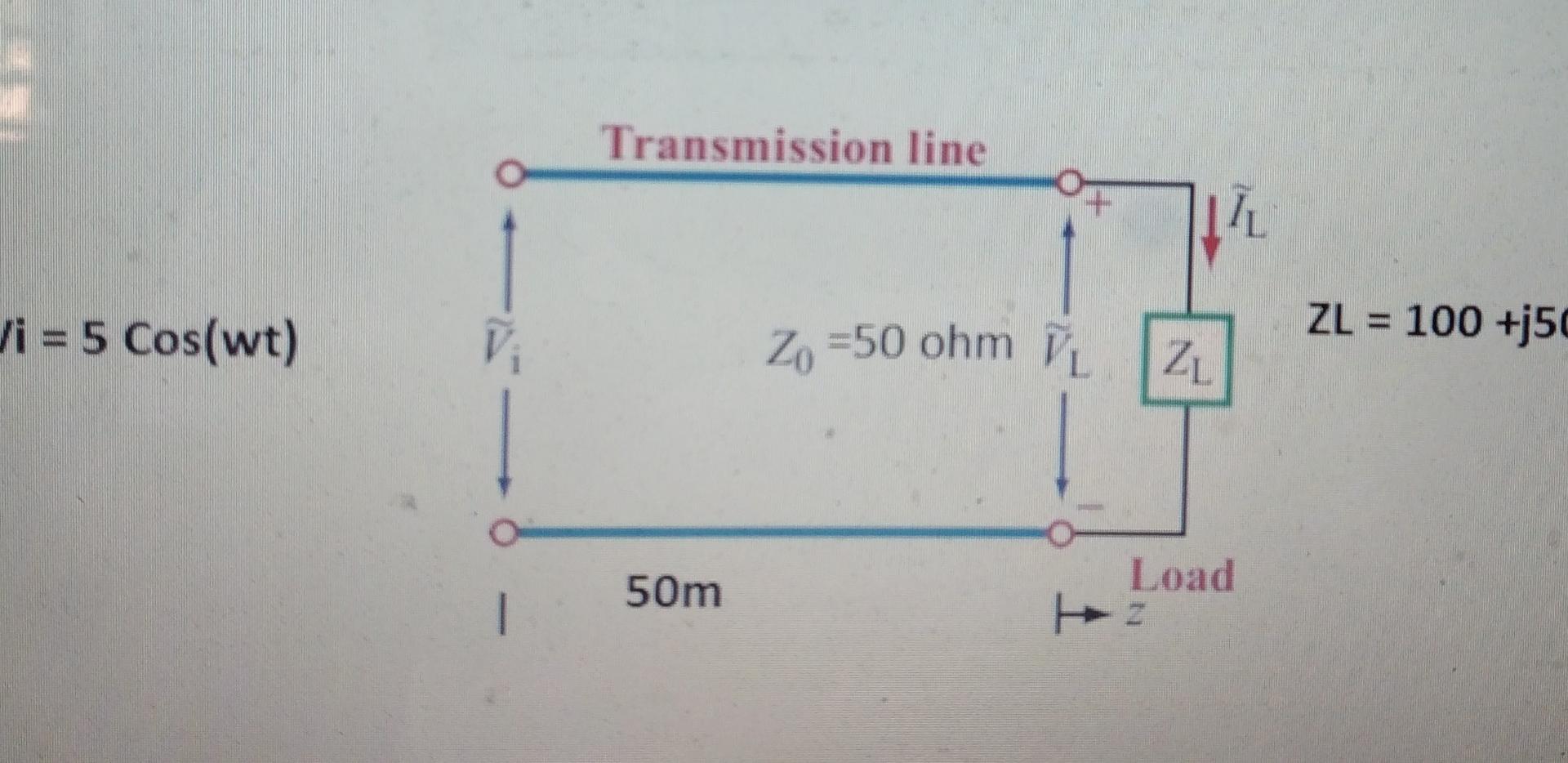

Transmission line 14 Vi = 5 Cos(wt) ZL = 100 +j50 V Zo =50 ohm V ZL . 50m Load smission line I Zo =50 ohm V ZL ZL = 10

[answerhappygod]

Transmission Line 14 Vi 5 Cos Wt Zl 100 J50 V Zo 50 Ohm V Zl 50m Load Smission Line I Zo 50 Ohm V Zl Zl 10 1 (179.29 KiB) Viewed 37 times

Transmission Line 14 Vi 5 Cos Wt Zl 100 J50 V Zo 50 Ohm V Zl 50m Load Smission Line I Zo 50 Ohm V Zl Zl 10 2 (426.67 KiB) Viewed 37 times

Transmission Line 14 Vi 5 Cos Wt Zl 100 J50 V Zo 50 Ohm V Zl 50m Load Smission Line I Zo 50 Ohm V Zl Zl 10 3 (122.65 KiB) Viewed 37 times

Transmission Line 14 Vi 5 Cos Wt Zl 100 J50 V Zo 50 Ohm V Zl 50m Load Smission Line I Zo 50 Ohm V Zl Zl 10 4 (568.25 KiB) Viewed 37 times

Transmission line 14 Vi = 5 Cos(wt) ZL = 100 +j50 V Zo =50 ohm V ZL . 50m Load

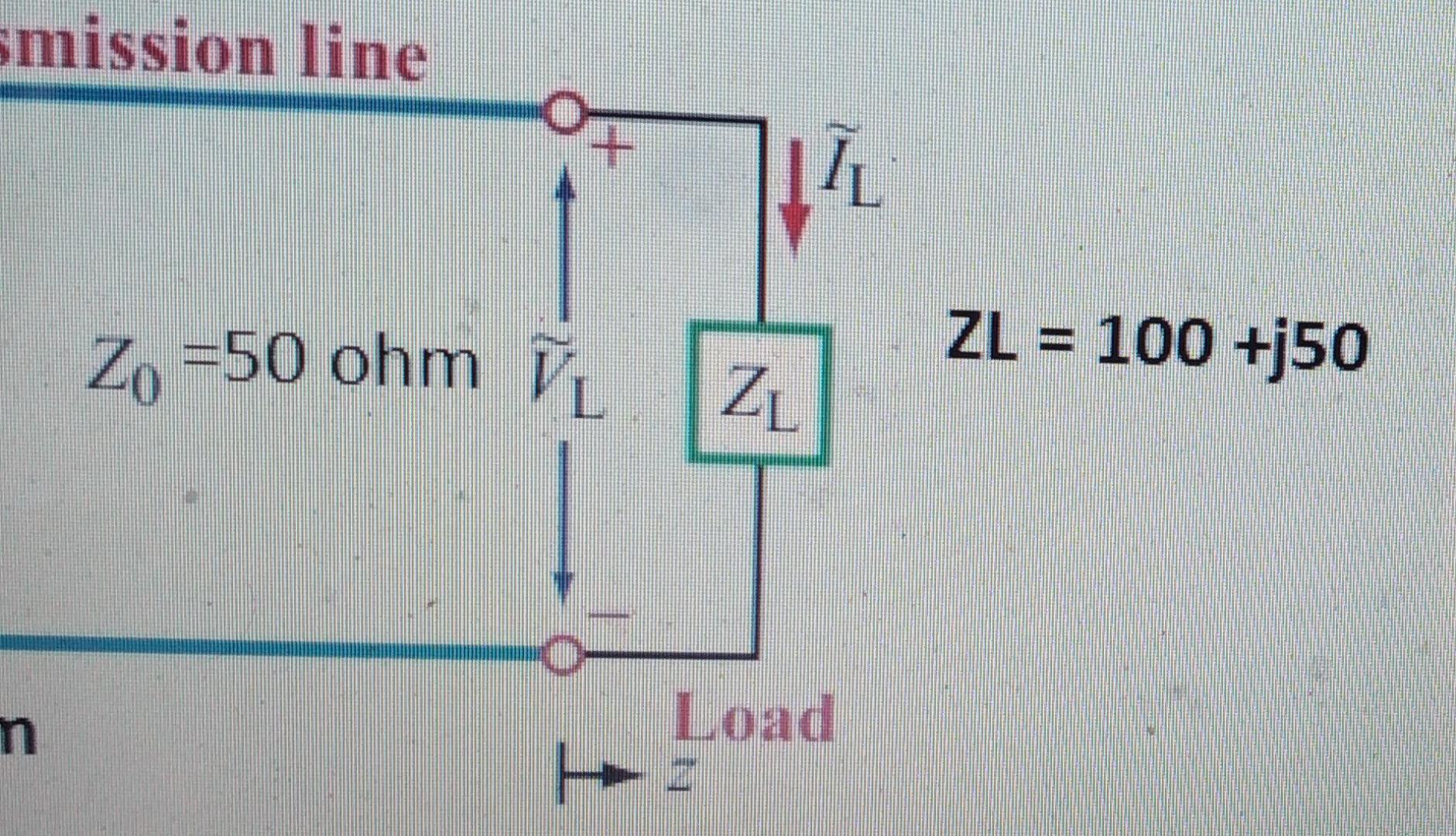

smission line I Zo =50 ohm V ZL ZL = 100 +j50 n Load E

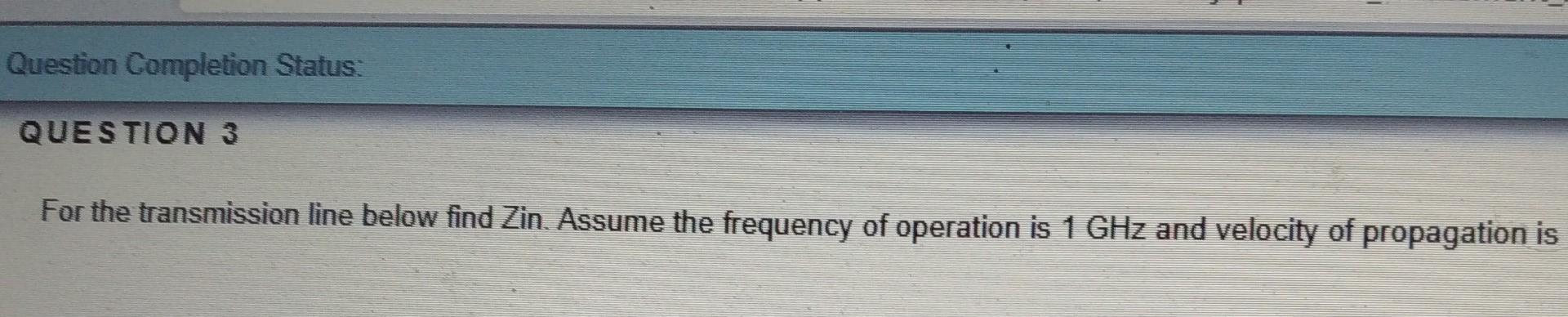

Question Completion Status: QUESTION 3 For the transmission line below find Zin. Assume the frequency of operation is 1 GHz and velocity of propagation is

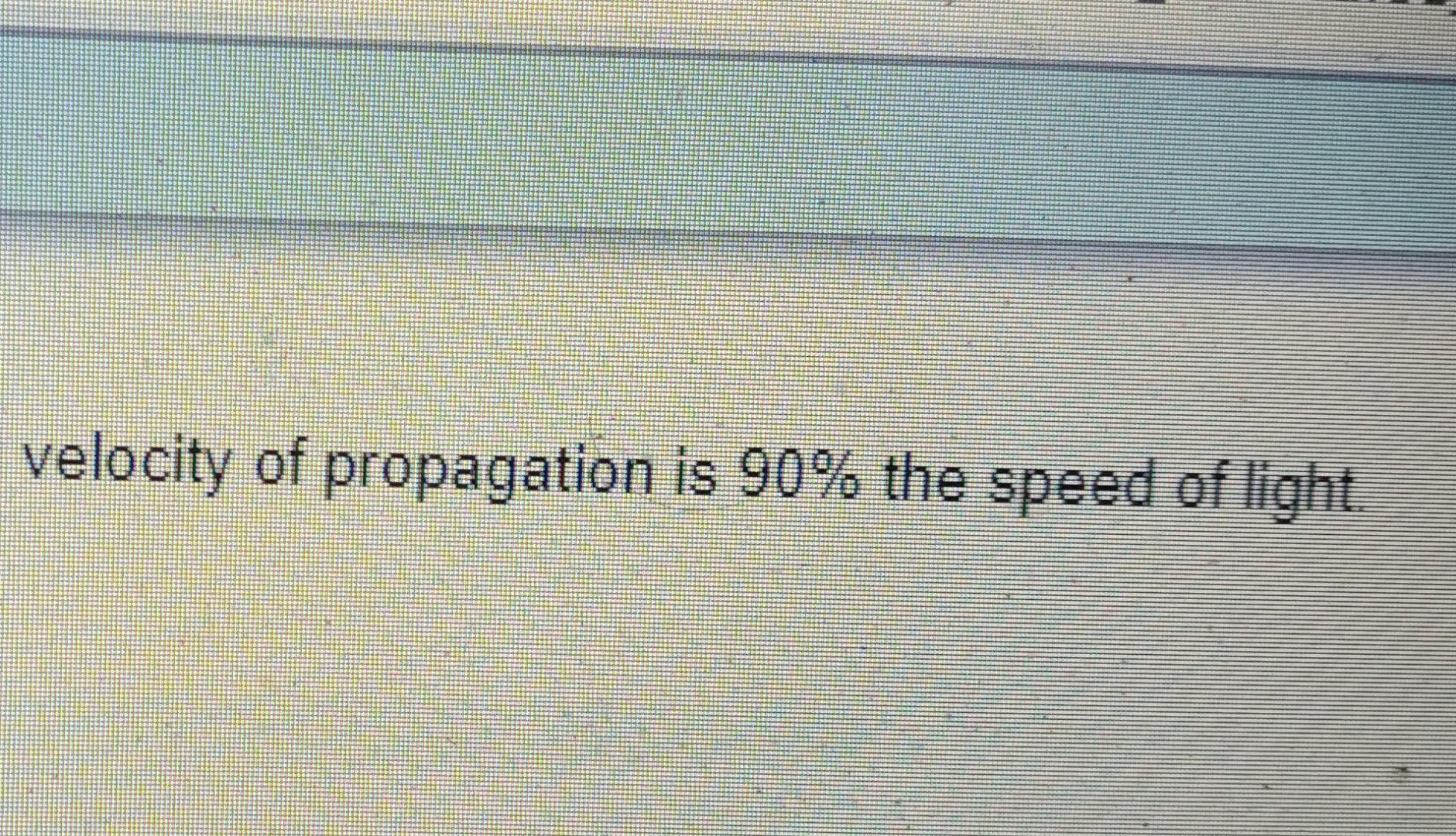

velocity of propagation is 90% the speed of light
