QUESTION 4 For the transsmision line below find the VSWR. Assume the frequency of operation is 1 GHzand velocity of prop

Post by answerhappygod »

Question 4 For The Transsmision Line Below Find The Vswr Assume The Frequency Of Operation Is 1 Ghzand Velocity Of Prop 1
Question 4 For The Transsmision Line Below Find The Vswr Assume The Frequency Of Operation Is 1 Ghzand Velocity Of Prop 1 (89.94 KiB) Viewed 42 times

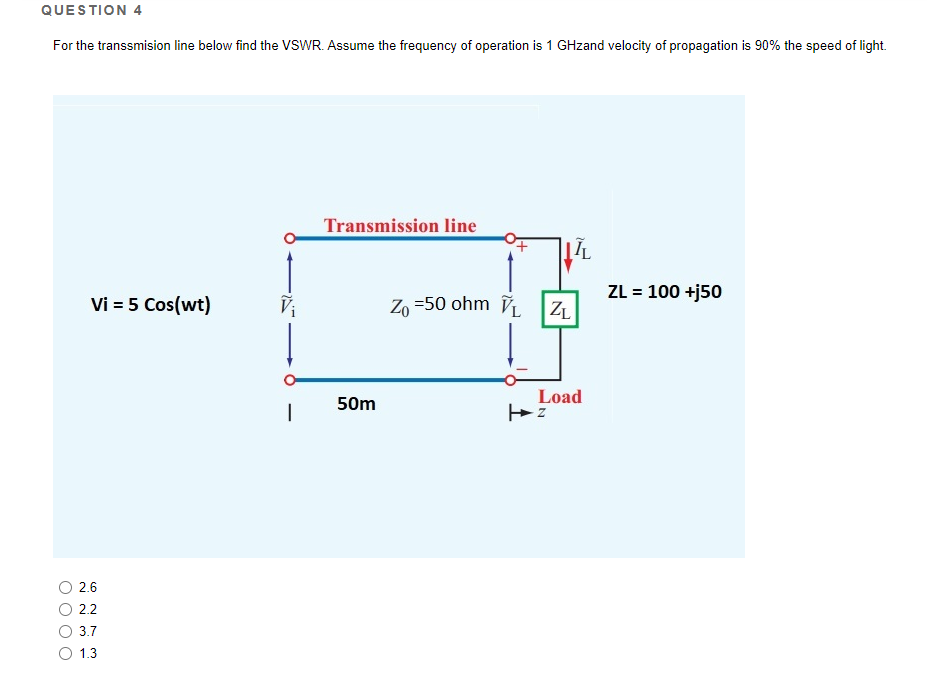

QUESTION 4 For the transsmision line below find the VSWR. Assume the frequency of operation is 1 GHzand velocity of propagation is 90% the speed of light. Transmission line IL ZL = 100 +j50 Vi = 5 Cos(wt) Vi Zo =50 ohm / ZL 50m Load 2 2.6 2.2 3.7 1.3
