QUESTION 3 For the transmission line below find Zin. Assume the frequency of operation is 1 GHz and velocity of propagat

Post by answerhappygod »

Question 3 For The Transmission Line Below Find Zin Assume The Frequency Of Operation Is 1 Ghz And Velocity Of Propagat 1
Question 3 For The Transmission Line Below Find Zin Assume The Frequency Of Operation Is 1 Ghz And Velocity Of Propagat 1 (159.42 KiB) Viewed 36 times

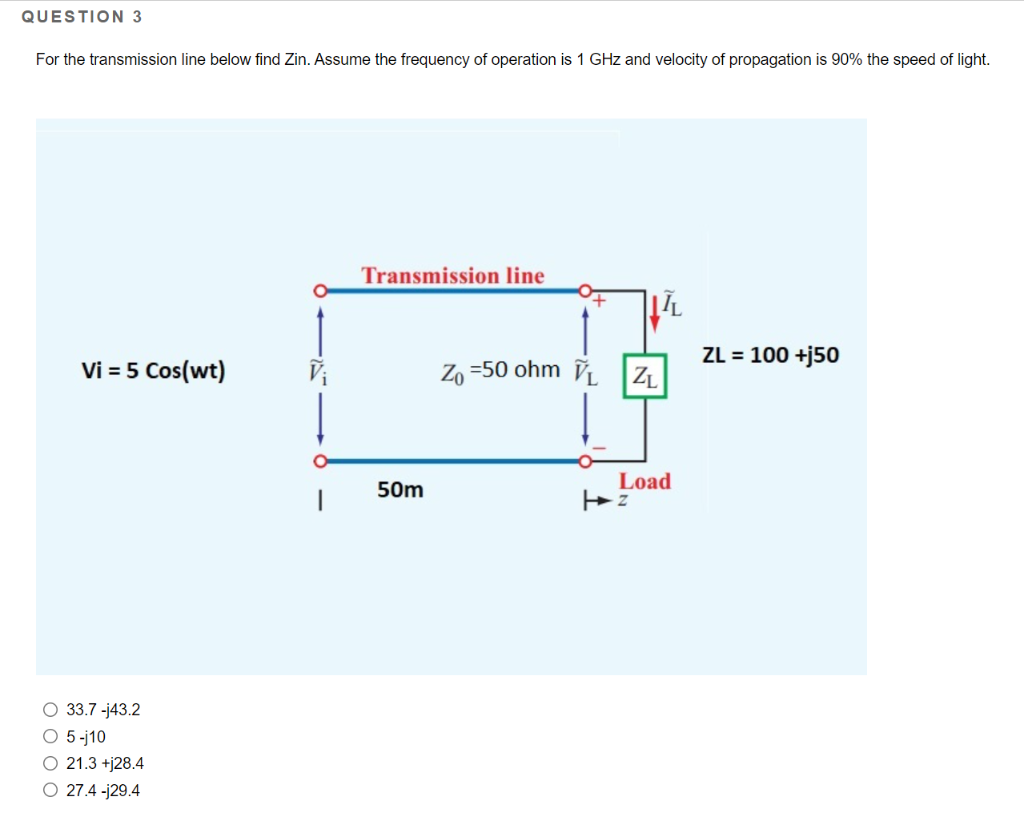

QUESTION 3 For the transmission line below find Zin. Assume the frequency of operation is 1 GHz and velocity of propagation is 90% the speed of light. Transmission line LIL ZL = 100 +j50 Vi = 5 Cos(wt) Ñ Zo =50 ohm ti ZL 50m Load O 33.7 -143.2 O 5-10 O 21.3 +j28.4 O 27.4 - 29.4
