= Use koT/q= 26mV, un Cox= 1004A/?, Hp Cox= 40UAN?, Vthn= |Vthpl = 0.5V Mp Ignore the channel length modulation an = 1p=

[answerhappygod]

Use Kot Q 26mv Un Cox 1004a Hp Cox 40uan Vthn Vthpl 0 5v Mp Ignore The Channel Length Modulation An 1p 1 (556.12 KiB) Viewed 56 times

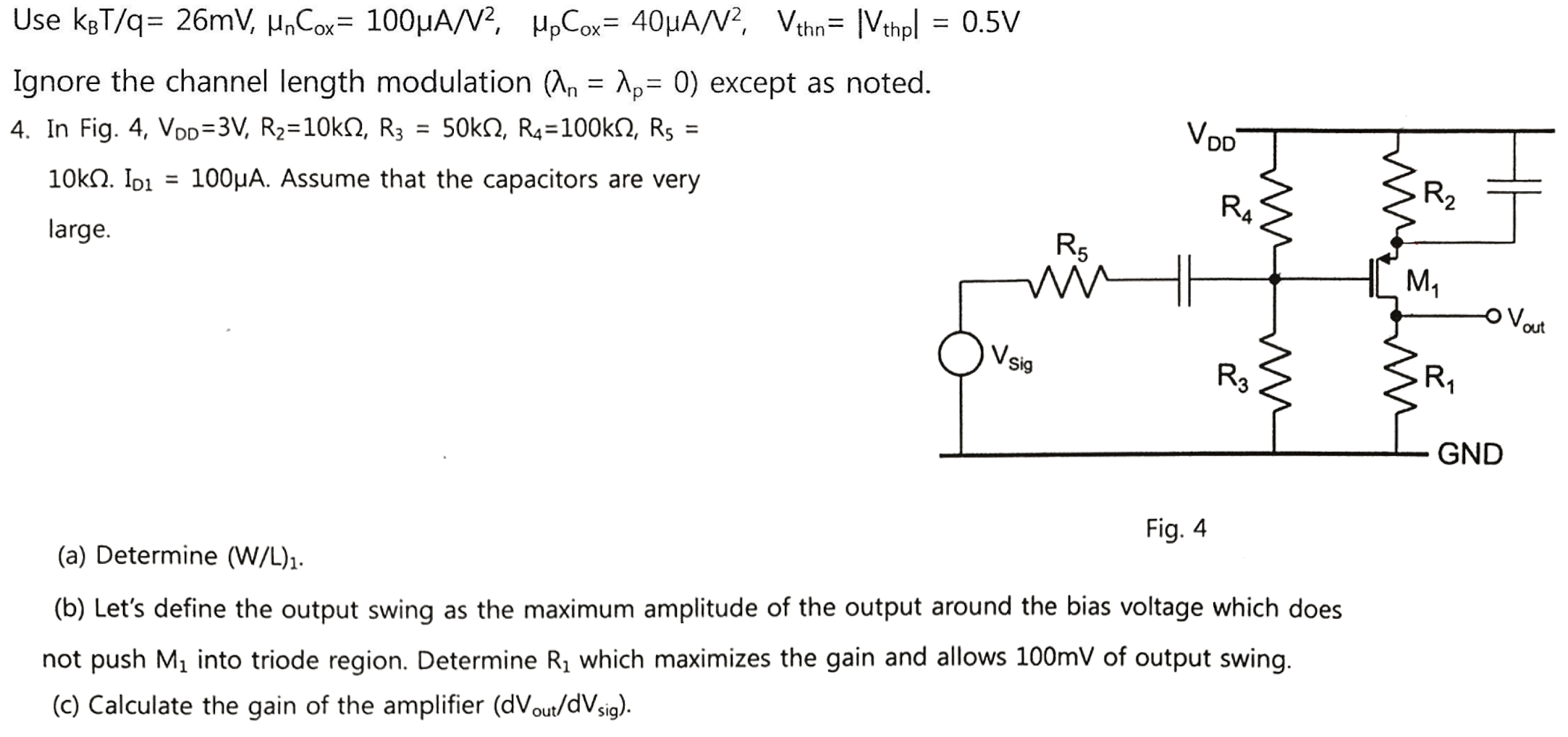

= Use koT/q= 26mV, un Cox= 1004A/?, Hp Cox= 40UAN?, Vthn= |Vthpl = 0.5V Mp Ignore the channel length modulation an = 1p= 0) except as noted. 4. In Fig. 4, Voo=3V, R2=10k12, R3 = 50k 2, R4=100k12, Rs = Rz = = = = Voo 10kΩ. Ιρι 100uA. Assume that the capacitors are very w RA R2 large. Rg w My ovout w Vsig R3 RA GND Fig. 4 (a) Determine (W/L),. (b) Let's define the output swing as the maximum amplitude of the output around the bias voltage which does not push My into triode region. Determine Ry which maximizes the gain and allows 100mV of output swing. (c) Calculate the gain of the amplifier (dVout/dVsig).
