(b) Find the simplified Boolean expression in both sum-of-products (SOP) and product-of- sums (POS) forms, for the logic

[answerhappygod]

B Find The Simplified Boolean Expression In Both Sum Of Products Sop And Product Of Sums Pos Forms For The Logic 1 (53.84 KiB) Viewed 33 times

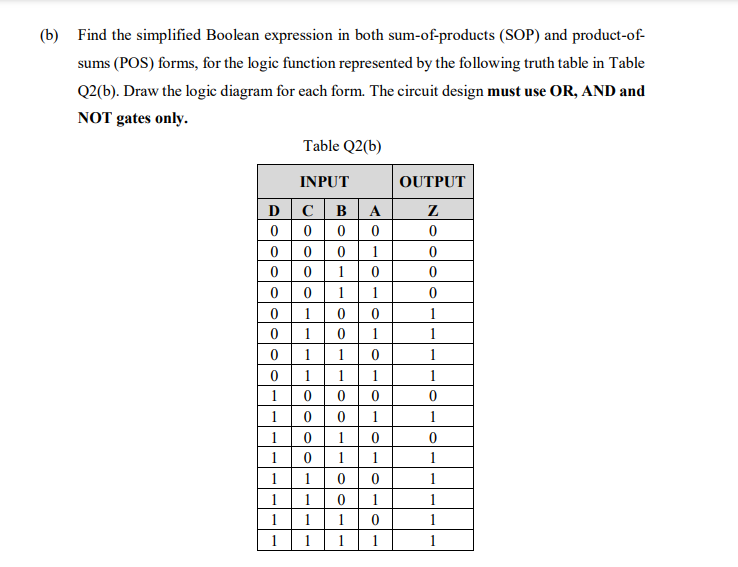

(b) Find the simplified Boolean expression in both sum-of-products (SOP) and product-of- sums (POS) forms, for the logic function represented by the following truth table in Table Q2(b). Draw the logic diagram for each form. The circuit design must use OR, AND and NOT gates only. Table Q2(b) INPUT OUTPUT D C B A Z 0 0 0 0 0 0 0 0 1 0 0010 0 0 0 1 1 0 0 10 0 1 0 1 0 1 1 0 1 1 0 1 0 11 1 1 1 0 0 0 0 1 0 0 1 1 1 01 0 0 0 1 1 1 1 10 0 1 1 0 1 1 1 0 1 1 1 1 1 1 1 1 1
