Consider The Following Signal V T A B Sin 2nfbt C Cos 2fct D Sin 27 Fpt Where A 1 3 V B 3 3 V C 1 3 1 (25.38 KiB) Viewed 29 times
Full working out with clear explanation, do not copy answer from
anywhere else. Thank you.

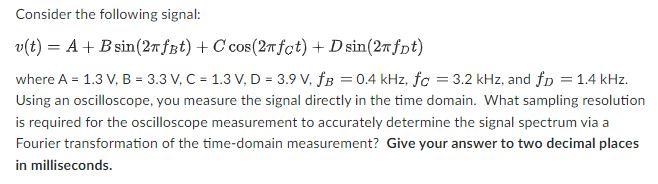

Consider the following signal: v(t) = A + B sin(2nfBt) + C cos(2fct) + D sin(27 fpt) where A = 1.3 V. B = 3.3 V. C = 1.3 V, D = 3.9 V. fB = 0.4 kHz. fc = 3.2 kHz, and fp = 1.4 kHz. Using an oscilloscope, you measure the signal directly in the time domain. What sampling resolution is required for the oscilloscope measurement to accurately determine the signal spectrum via a Fourier transformation of the time-domain measurement? Give your answer to two decimal places in milliseconds.
