Q1) Design a circuit using base bias that operates from a 15 V de voltage and draws a maximum current from the de source

[answerhappygod]

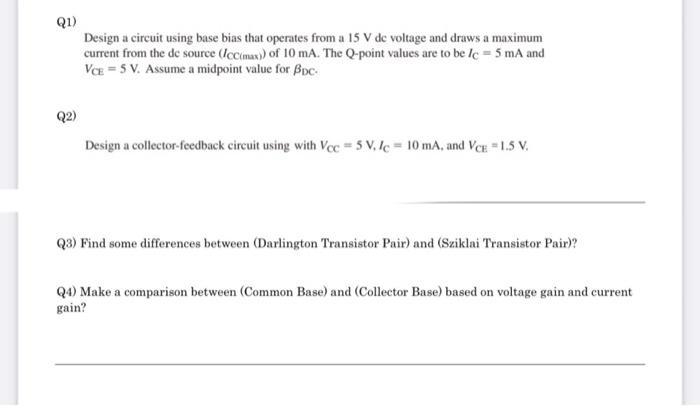

Q1 Design A Circuit Using Base Bias That Operates From A 15 V De Voltage And Draws A Maximum Current From The De Source 1 (21.39 KiB) Viewed 24 times

Q1) Design a circuit using base bias that operates from a 15 V de voltage and draws a maximum current from the de source (cc/max)) of 10 mA. The Q-point values are to be Ic = 5 mA and VE = 5 V. Assume a midpoint value for Boc Q2) Design a collector-feedback circuit using with Voc = 5 V, Ic = 10 mA, and VCE = 1.5 V. Q3) Find some differences between (Darlington Transistor Pair) and (Sziklai Transistor Pair)? Q4) Make a comparison between (Common Base) and (Collector Base) based on voltage gain and current gain?
