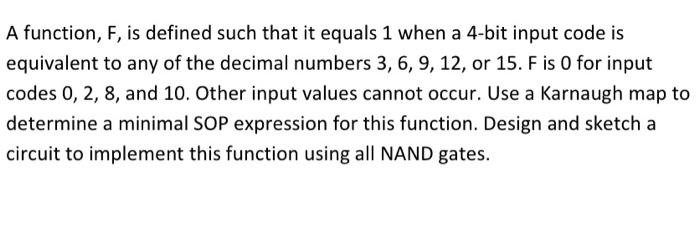

A function, F, is defined such that it equals 1 when a 4-bit input code is equivalent to any of the decimal numbers 3, 6, 9, 12, or 15. F is O for input codes 0, 2, 8, and 10. Other input values cannot occur. Use a Karnaugh map to determine a minimal SOP expression for this function. Design and sketch a circuit to implement this function using all NAND gates.
